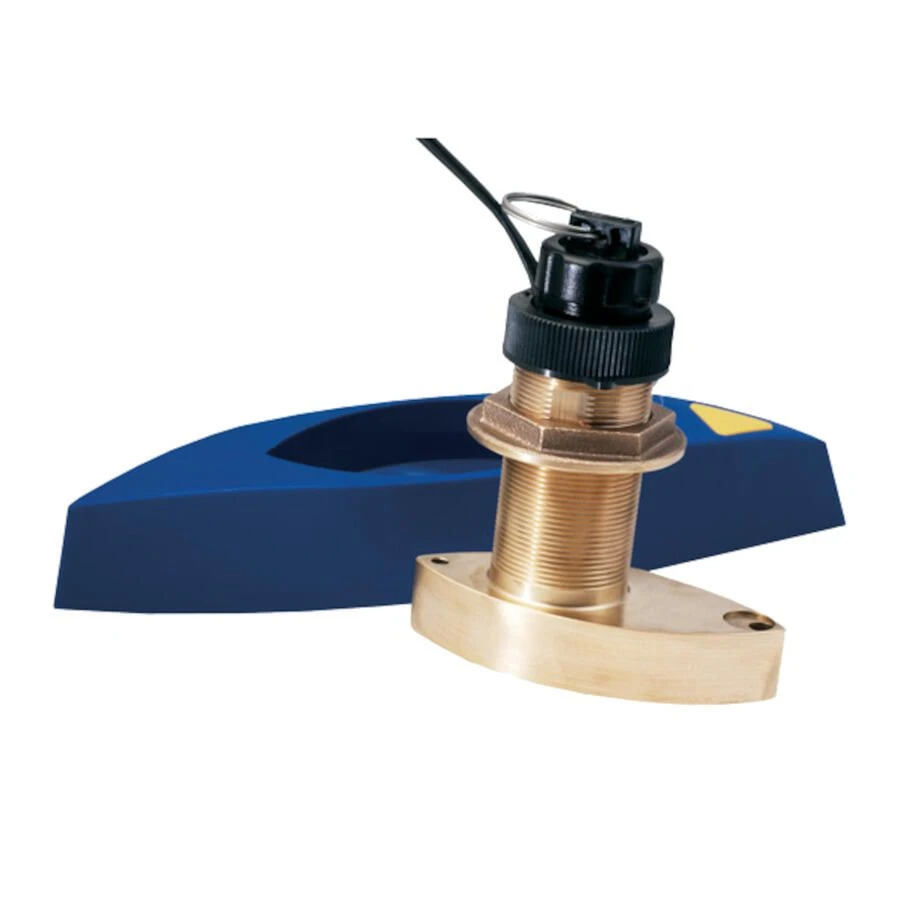

Airmar B744V Thru-Hull Dual Frequency Triducer Multisensor

The B744V is a Triducer® Multisensor featuring depth, speed, and temperature in a single housing. The 50/200 kHz, dual-frequency, single, ceramic element provides great target detail in shallow water at 200 kHz and good deep-water bottom tracking at 50 kHz.

Features:

• Depth, speed, and fast-response water-temperature sensing in one housing
• 600W of power
• Dual-frequency element:
  • 50 kHz with a wide 45° beamwidth for depth performance to 1200′ (353 m)
  • 200 kHz with a 12° beamwidth for depth performance to 700′ (206 m)
• Bronze housing with a high-performance fairing for optimal bottom tracking at higher speeds
• Self-closing water valve reduces water flow into the hull when the paddlewheel insert is being replaced with the blanking plug
• Fins on sides of paddlewheel cavity improve accuracy in cross-flow conditions

Specifications:

• Acoustic window: Urethane
• Connector: Model dependent
• Cable length: 33′ (10 m)
• Conventional beam: 45°/12°
• Frequency band: 50/200 kHz
• Functions: Depth, Speed, Temperature

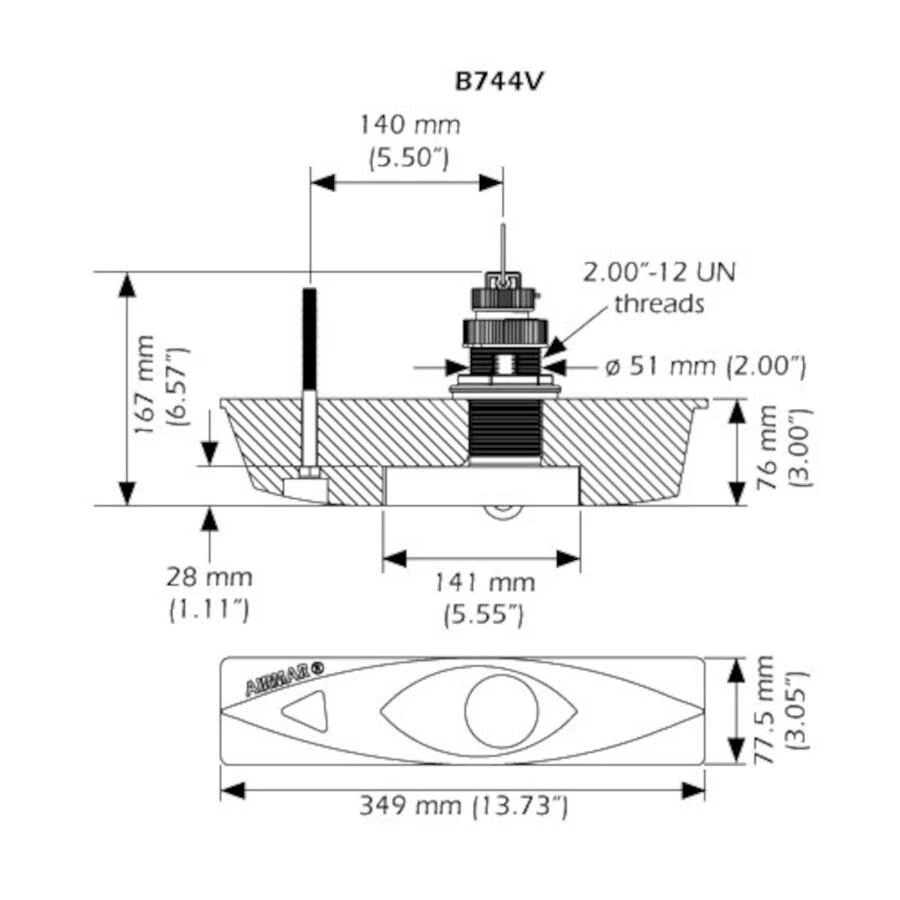

• Hole size: 2″ (51 mm)
• Hull material: Fiberglass or wood
• Material: Bronze
• Max deadrise: Up to 24° with fairing
• Max depth: Low frequency – 1200′ (366 m), High frequency – 700′ (206 m)
• Max vessel LOA: Up to 30′ (9 m)

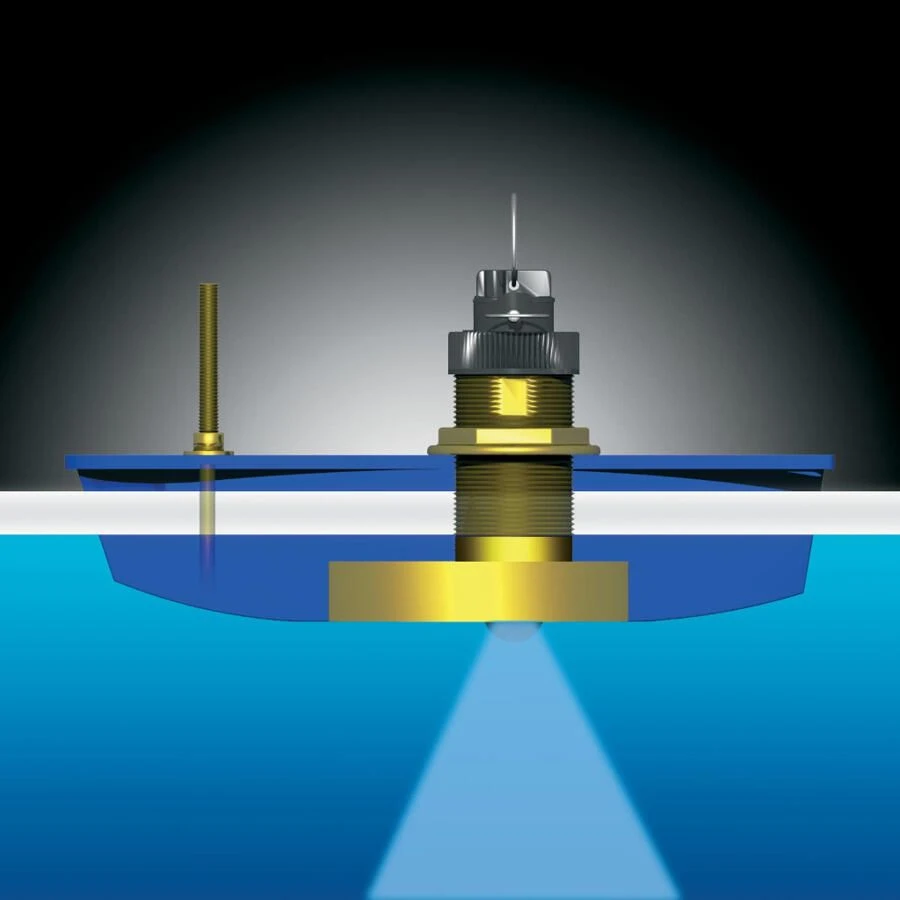

• Mounting style: Thru-hull with fairing
• Power rating: 600W
• Retractable housing: Yes
• Single or dual frequency: Conventional dual frequency
• Tilted element: No
• Usable shaft length: 4.75″ (121 mm)
• Weight: 5.5 lbs (2.5 kg)
