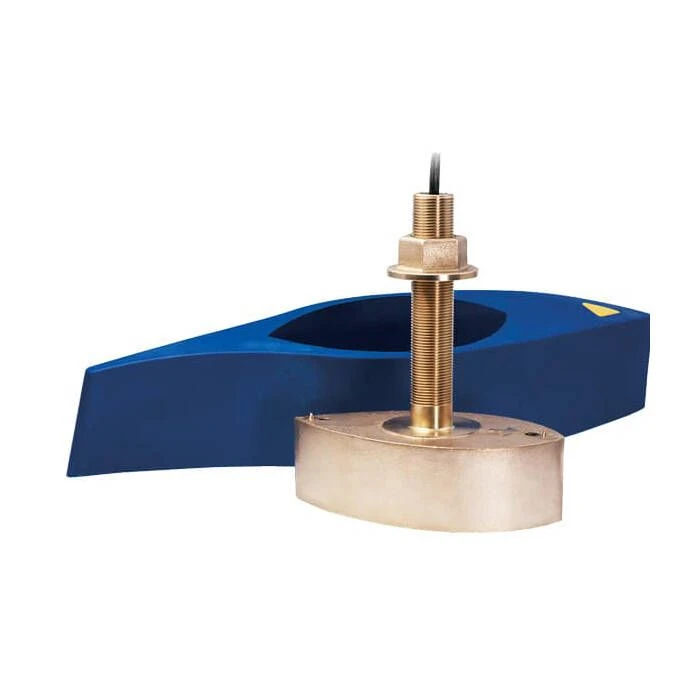

Airmar B265 Chirp-Ready Thru-Hull Transducer – 12-Pin Furuno

Airmar’s B265 Chirp-Ready Thru-Hull Transducer is designed to maximize the performance of your sounder; providing great opportunities to detect top gamefish through dual bandwidths.

Features:

• Depth and fast-response water-temperature sensor
• 1 kW of power for great deep to mid-depth water performance

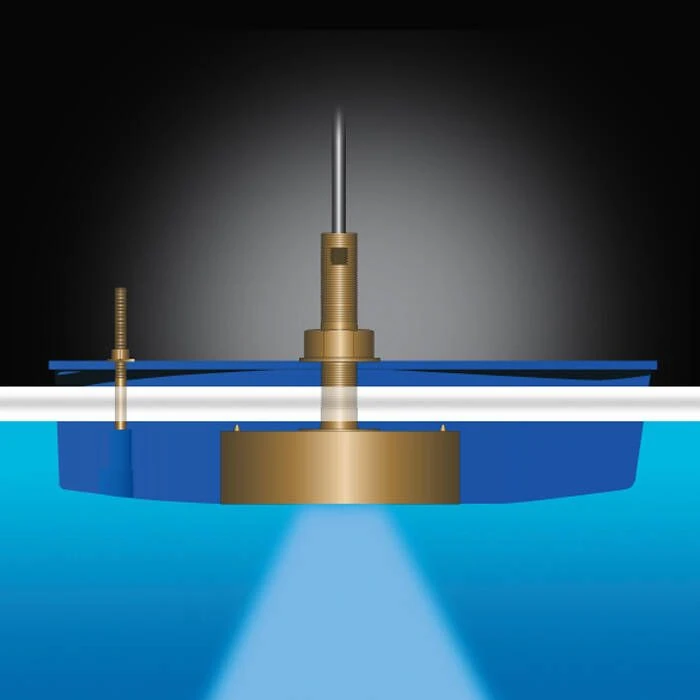

• Bronze transducer housing with high-performance fairing block for optimal performance at speeds over 30 knots (34 mph)
• Delivers clear target details, bottom discrimination, as well as bait and game-fish separation at all depths
• Dual Chirp band covers popular fishing frequencies for detecting certain species of fish
• Exclusive Xducer ID® technology
• Automatic configuration of echosounder to transducer – enables the echosounder to adapt to the transducer connected, providing an optimized system
• Continuous monitoring of ceramic operating temperatures
• Transducer profile information can be presented on the OEM echosounder display
• 12-Pin cable end for use with compatible Furuno sounders
• Includes mounting hardware

Specifications:

• Select Chirp band and frequency
• Recommended boat length: 8 m (25′) and above
• Hull material: Fiberglass or wood
• Deadrise angle: Up to 20° with fairing block
• Acoustic window: Urethane
• Transducer element: Eight internal broadband ceramic assemblies

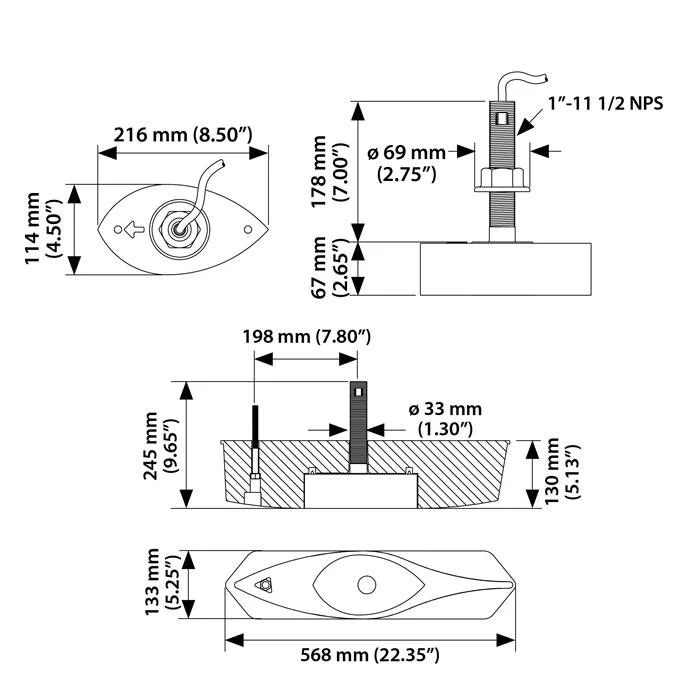

• Hole diameter: 33 mm (1-5/16″)
• Cable end connection: 12-Pin Furuno
• Weight: 7.3 kg (16 lbs)
• Low Frequency: 42 to 65 kHz
  • 25° to 16° beamwidth
  • Maximum depth of 914 m (3,000′)
  • Provides greater depth range, wider beamwidth, and ultimately more coverage under the boat
• Medium Frequency: 85 to 135 kHz
  • 16° to 11° beamwidth
  • Maximum depth of 457 m (1500′)
  • Provides the ability to sound deeper than the high frequency, along with better resolution than the low frequency
  • Wider beam than the high frequency, achieving more coverage under the boat and greater opportunity to find fish
  • 73 kHz of total bandwidth from one transducer
• High Frequency: 130 to 210 kHz
  • 10° to 6° beamwidth
  • Maximum depth of 304 m (1000′)
  • More sensitive to small targets and will send back detailed information which will display as crisp, high-resolution images on the echosounder screen
  • 103 kHz of total bandwidth from one transducer
