Airmar B175 Chirp-Ready Transducer – Bare Connector

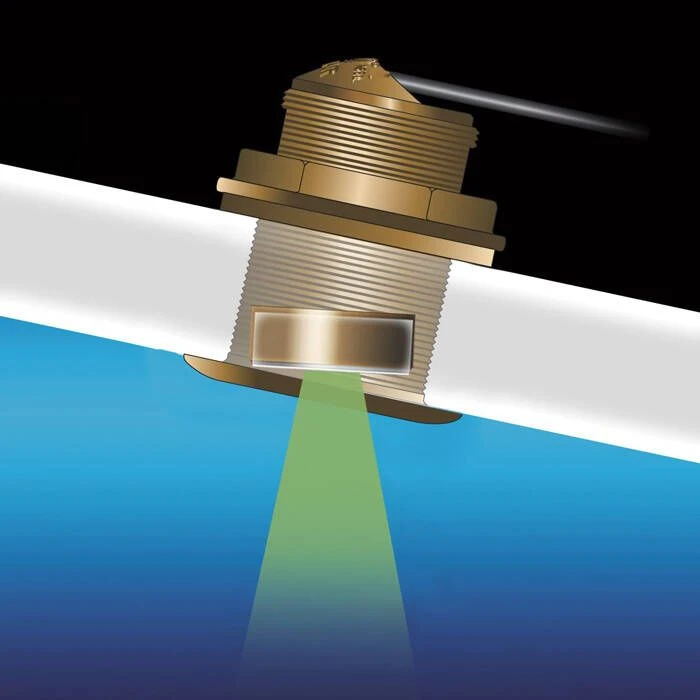

Airmar’s low-profile, Chirp-ready B175 transducer is designed to maximize the performance of your sounder; compensating for hull deadrise with permanently tilted elements for maximized echo returns and a straight down sonar beam.

Features:

• Depth and fast-response water-temperature sensor
• 1 kW of power for great deep to mid-depth water performance
• Low-profile, thru hull housing provides good resolution at speed when properly installed flush to the hull

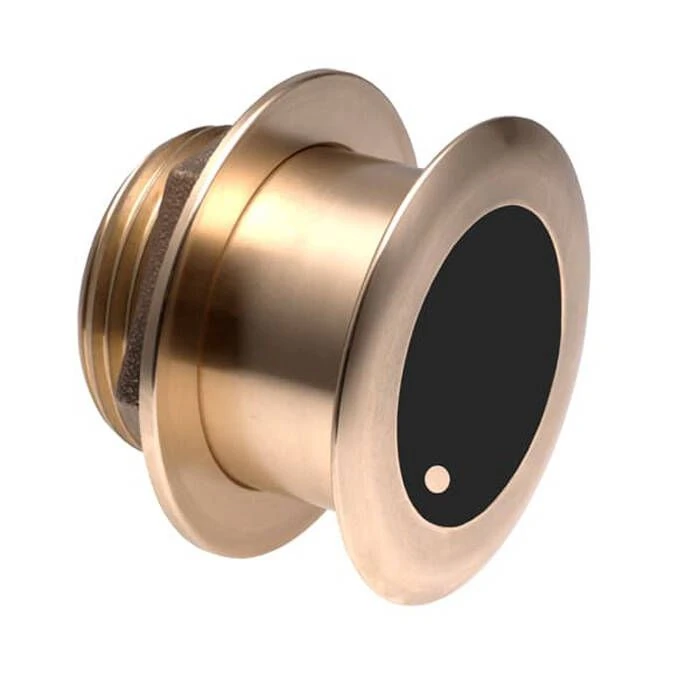

• Bronze housing for use on stepped, planing or displacement hull
• Available in three tilted element models designed to compensate for hull deadrise
  • Fixed 0° tilted version for 0° to 7° hull deadrise
  • Fixed 12° tilted version for 8° to 15° hull deadrise
  • Fixed 20° tilted version for 16° to 24° hull deadrise
• Exclusive Xducer ID® technology
• Automatic configuration of echosounder to transducer – enables the echosounder to adapt to the transducer connected, providing an optimized system
• Continuous monitoring of ceramic operating temperatures
• Transducer profile information can be presented on the OEM echosounder display
• Bare wire cable end for no connector applications

Specifications:

• Select Chirp band, fixed tilt angle, frequency and beam width
• Recommended boat length: Up to 11 m (36′)
• Hull material: Fiberglass or wood
• Acoustic window: Urethane
• Transducer element: Seven internal broadband ceramic assemblies

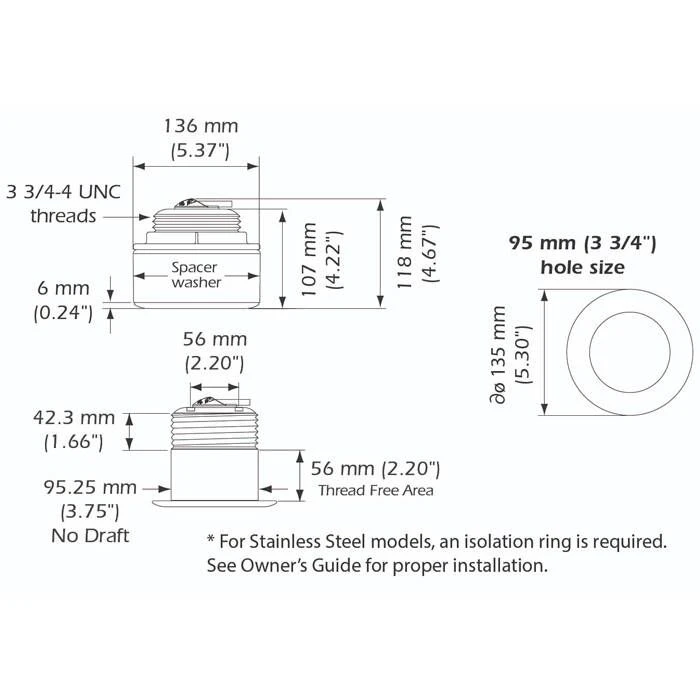

• Hole diameter: Fiberglass or wood hull: 95 mm or 3-3/4″
• Cable end connection: Bare wire
• Weight: 2.7 kg (6 lb.)
