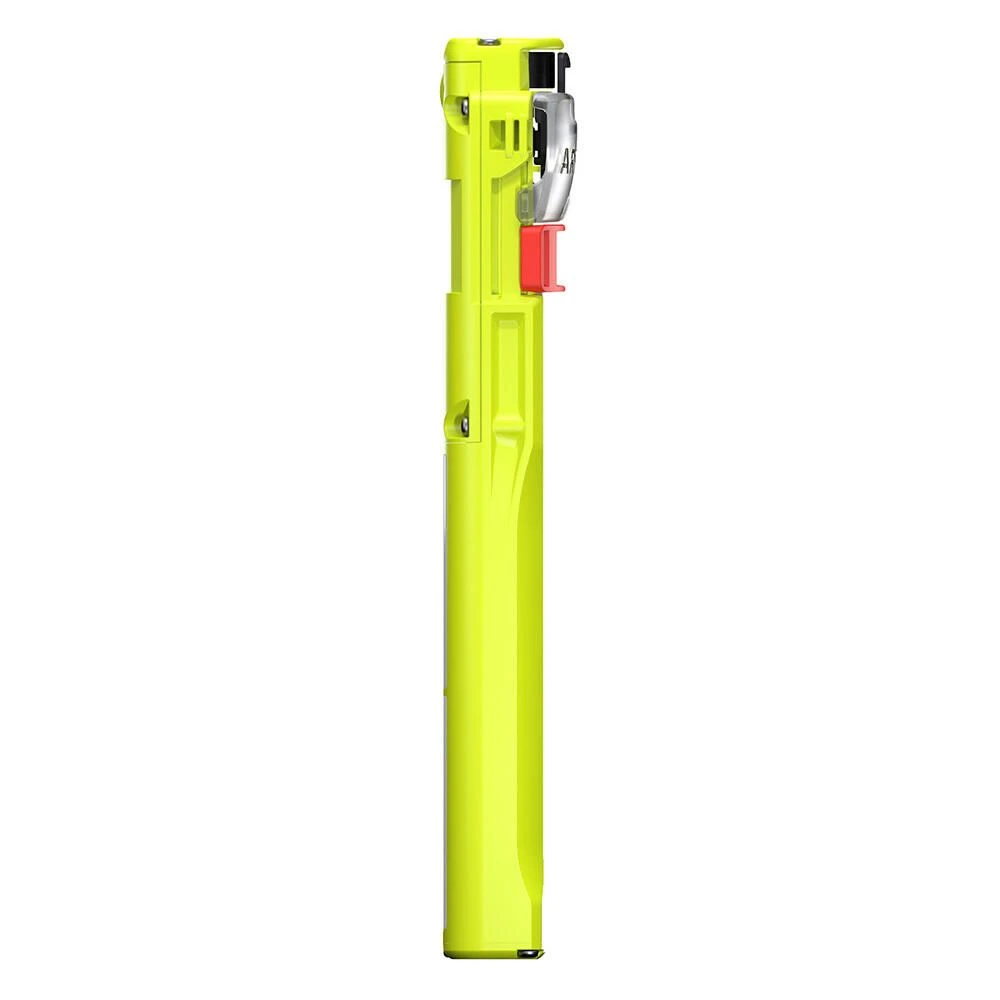

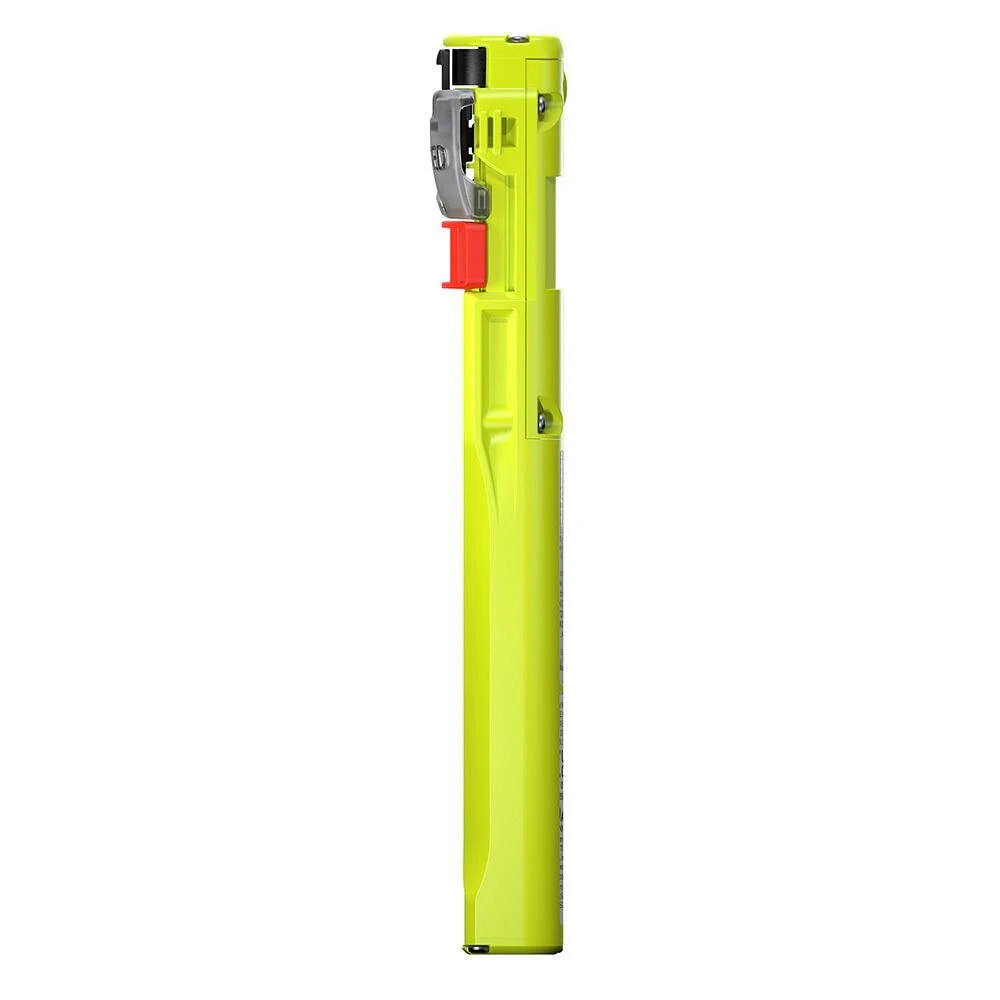

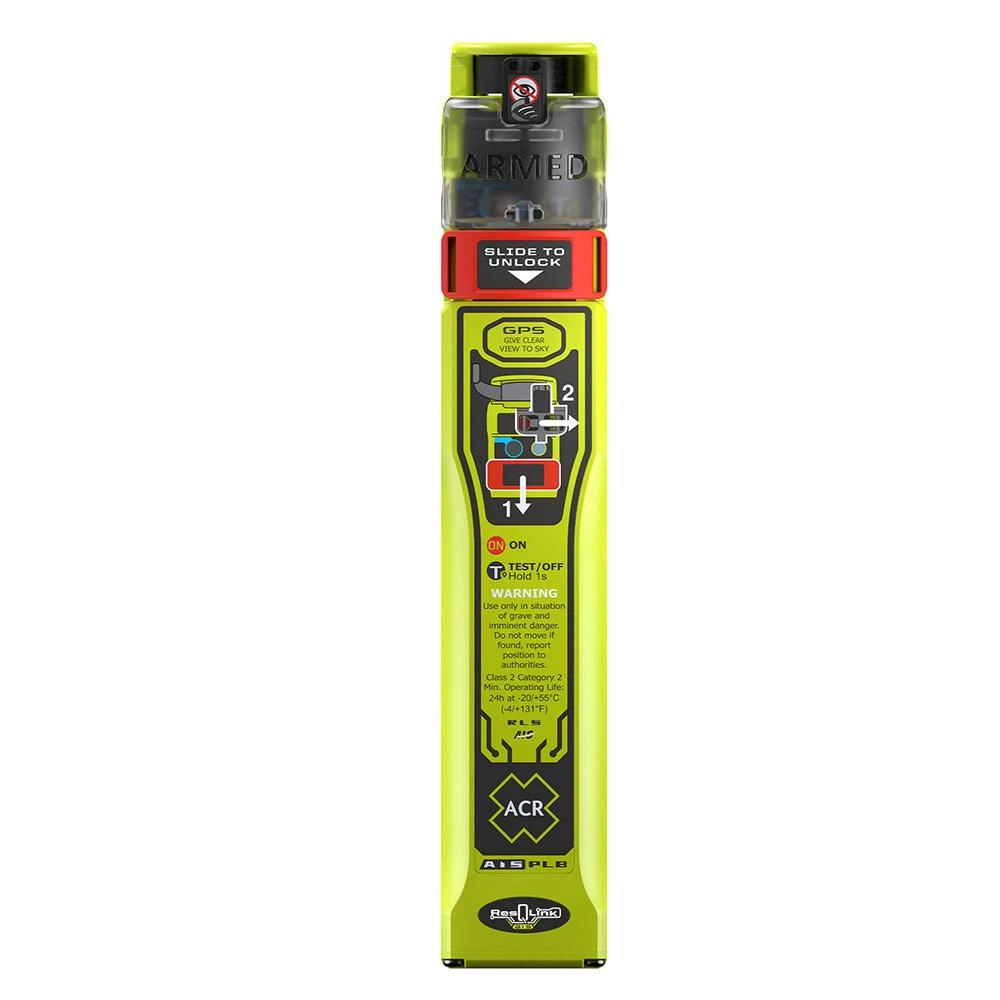

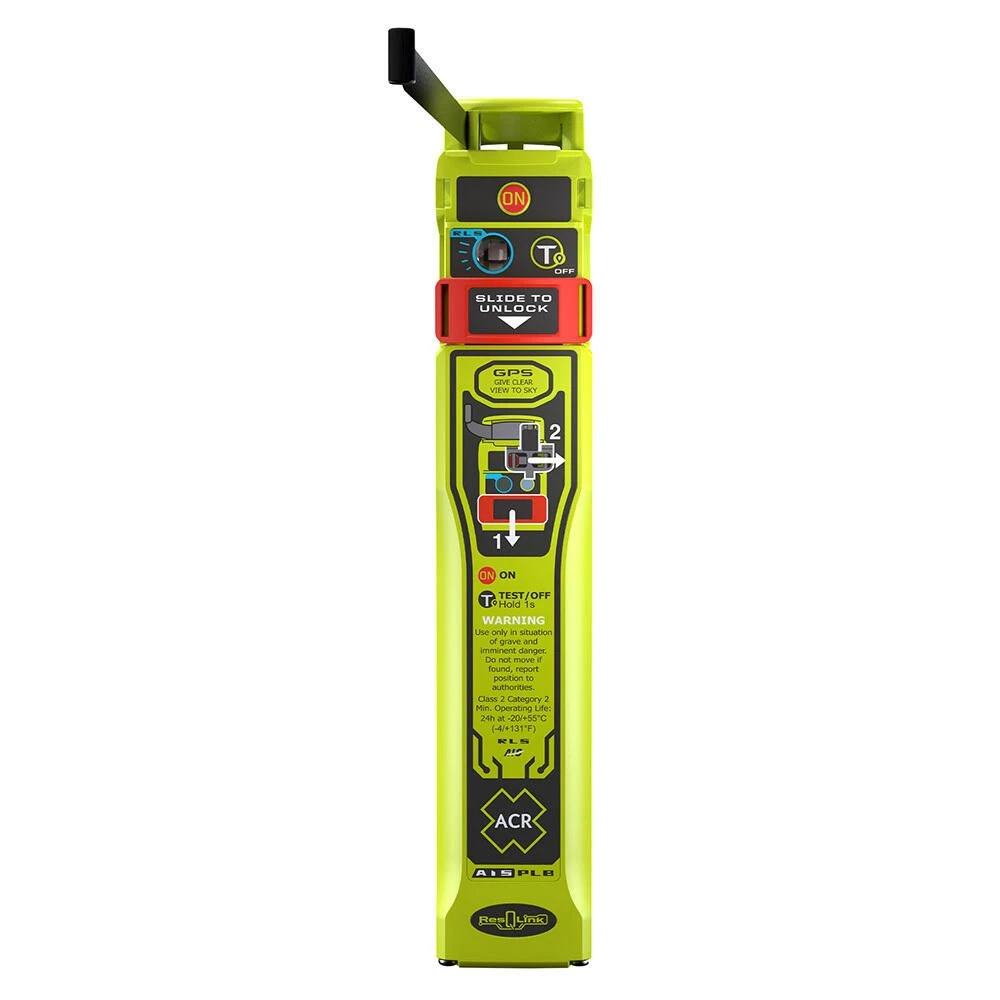

ACR ResQLink AIS GPS Personal Locator Beacon – 2933

The ACR ResQLink AIS Personal Locator Beacon (PLB) is the most technologically advanced beacon in the world as it contains both satellite and local transponders. With the introduction of Automatic Identification System (AIS) functionality, Return Link Service (RLS) technology, and Near Field Communication (NFC) capability in one 406 MHz beacon, the ResQLink AIS represents a critical advancement in the evolution of PLB technology. The combination of 406 MHz and AIS distress messaging pairs both global and local rescue into one beacon for the first time, extending access to the Coast Guard and Search and Rescue as well as commercial and recreational boats in the area. Alerting local AIS equipped boats in your vicinity allows for additional vessels to respond directly to the digital mayday with your precise location.

Features:

• No subscription required
• 406 MHz Cospas Sarsat distress signal (MEOSAR compatible)
• 121.5 MHz local homing signal
• AIS (Automatic Identification System) locating signal
• Smartphone connectivity via NFC (Near Field Communication)
• Free ACR Beacon Mobile App (IOS and Android)
• Return Link Service (RLS) functionality
• GNSS via GPS, Galileo, and Glonass
• Strobe and infrared strobe light
• Global coverage
• Simple PFD attachment
• Designed to Integrate with common Inflatable PFDs
• Multifunction clip system included
• Small and lightweight
• 5-year battery life
• Over 24 hours of operational life

Specifications:

• Satellite Tx: 406 MHz +/- 1 KHz (5W Typ.)
• AIS Tx: 161.975/162.025 MHz +/- 500 Hz (1W)
• Homing Tx: 121.5 MHz (25-100mW PEP)
• Size (H x W x D): 7.87″ x 1.41″ x 1.18″ (20 x 3.6 x 3 cm)
• Weight: 0.42 lbs (190 g)
• Battery: Lithium battery, Li/FeS2
• Class: Class 2 operation (at -4° F / -20° C)
• Temperature range:
  • Storage: -22° F to +158° F (-30° C to +70° C)
  • Operating: -4° F to +131° F (-20° C to +55° C)
• Battery replacement: 6-Years from date of manufacture or 5 years after the beacon is placed into service or after emergency use, whichever is first
• GPS: Multi-constellation receiver (GPS, Galileo, & Glonass GNSS)
• Activation: Manual Activation or Via Lifejacket Inflation System (semi-automatic)
• Buoyant: No (flotationpouch available: P/N: 9649)
• Operational life: Over 24 hours
• Warranty: 5-years
• Waterproof: 10 m (1.0 bar) for 1 hour
• Approvals: Cospas-Sarsat, FCC, RED

Product Brochure (1.51 MB)
