ACR Pathfinder PRO Search And Rescue Transponder – 2914

Stay safe at sea with the Pathfinder™ PRO Search and Rescue Transponder (SART). This SART complies with IMO SOLAS regulations, and has a superior lithium battery that provides over 96 hours of operating life in standby mode, and 12 hours of active operating life.

Features:

• Enhances radar returns with 12 intense blips, whereby the first blip represents the SARTs location
• Transmits through the 9.2-9.5 GHz band marine radar when interrogated by radar
• Non-Hazmat Lithium battery (5-year replacement life) operates for over 96 hours in standby mode plus an additional 12 operational hours
• Compact 8.94 x 2.56 inches (227 mm x 65 mm) unit – easily packs into life rafts
• Waterproof to 10 meters (33′)

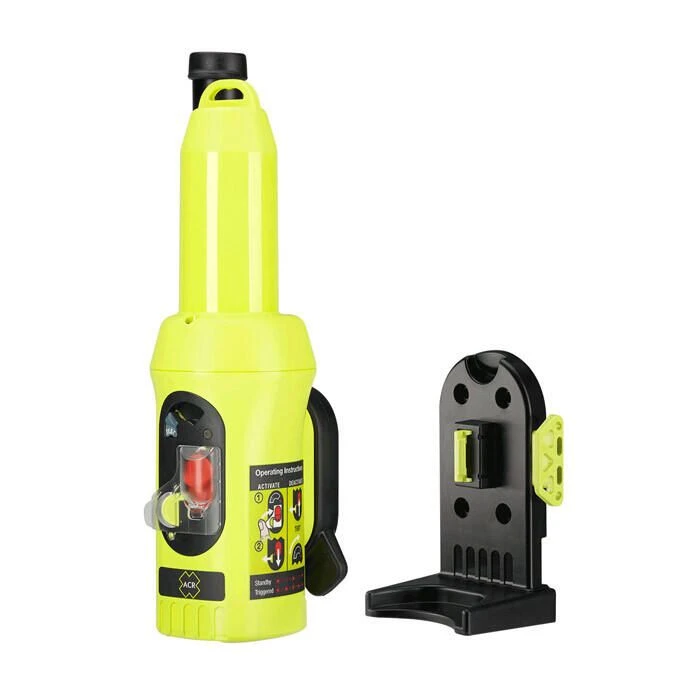

• Includes vessel mounting bracket and collapsible pole
• Worldwide certifications; complies with IMO, MED, FCC and IEC standards

Specifications:

• Dimensions: 8.94″ x 2.56″ x 2.36″
• Weight: 440 g
• Deployment: Manual
• Battery: Lithium/Iron Disulfide (Li/FeS2) non-hazardous (5 year replacement life)
• Waterproof: >10 meters (33 ft) @ +20° C
• Frequency: 9.2-9.5GHz
• Output power: >26 dBm eirp
• Operating: -20° C to +55° C
• Storage: -30° C to +70° C
• Standby: >96-hour operating life
• Active: >12-hour operating life
• Certification: FCC, MED, Industry Canada, and Chinese CCS type approval certificate. Tested to IMO and IEC Standards.

Owner’s Manual (5.96 MB)

Safety Data Sheet
