ACR Olas Guardian Wireless Engine Kill Switch And Man Overboard Alarm System – 2985

The ACR OLAS Guardian is a dual function, small wireless engine kill switch that acts within two seconds of a person going overboard. OLAS Guardian offers powerboat, motorboat, and RIB drivers the security of knowing that their boat will stop in an instant, should the skipper or crew get separated from the boat; reducing the chances of a serious accident from a loose, unmanned, uncontrolled vessel.

Features:

• For use in place of or alongside an existing kill cord switch
• Will operate if the physical kill cord has not been attached to the driver
• Ultra-bright red LED visual alarm to indicate an alert, also acts as a light to illuminate the surrounding area
• 85 dB audible alarm will sound to indicate an OLAS transmitter has gone out of range
• Connect up to 15 ACR OLAS transmitters
• Utilizes the latest Bluetooth® 5.0 Technology
• Can be connected to your vessel’s 12/24V power supply to ensure it is always connected when you have the power running
• Color-coded control switch
• After 5 seconds the kill switch is deactivated, enabling the engine to be restarted
• Individual relay selection for easily adjusting if the OLAS transmitter triggers the engine cut-off/relay, or only triggers the Guardian’s inbuilt MOB alarm
• Automatic connection
• No connection alert and override
• Pause mode, used when you need to leave the boat with the engine idling, such as walking down a pontoon, knowing the OLAS transmitter will go out of range
• Run alongside existing Kill switch makes the system easy to control and setup, without the need for the OLAS App
• For use with vessels up to 50 feet (12 meters)
  • Extend the coverage range on larger vessels with the ACR OLAS EXTENDER for coverage on boats up to 80 feet (Sold separately)
• Easily operated via the OLAS Mobile APP, which enables how long it should take before an engine is shut off
• Mobile APP – IOS and Android (Free Download)
  • Connect multiple OLAS transmitters to 1 phone or tablet
  • Connect 1 OLAS transmitter to multiple phones/tablets
  • Solo Mode (Text Message Alerts to Emergency Contacts with GPS coordinates)

Specifications:

• For use with vessels up to 50 feet (12 meters)
• Dimensions: 3.6″ (H) x 3.5″ (L) x 1.5″ (W)
• Weight: 3.9 Ounces
• Color: Black and clear
• Operation: Press button once to turn on, all tags within 2 meters are tracked
• Maximum number of connected OLAS transmitter: Connect up to 15 OLAS transmitters (OLAS tags and/or OLAS float-on)
• Power/current: 10-32V/13-17mA
• Visual alarm: Red LED/55 lumens
• Audible alarm: 85 Decibels
• Automatic restart: After 5 seconds
• Automatic connection: Automatically connects to any activated OLAS transmitter within a 2 meter range
• Relay selection: Use the OLAS APP to select which crew members transmitters should trigger the engine cut off, or only trigger the Guardians built-in alarm
• Buoyant: No
• Waterproof: Yes (IP67)
• Housing material: ABS
• Fuse: 1-3 Amp fuse recommended (Sold separately)
• Bluetooth®: 4.2 + 5.0
• Applications: Recreational and commercial boating

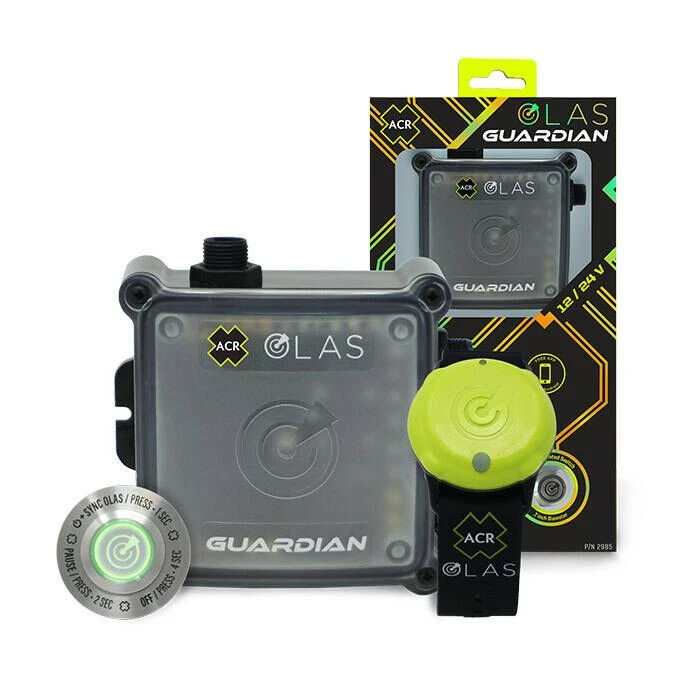

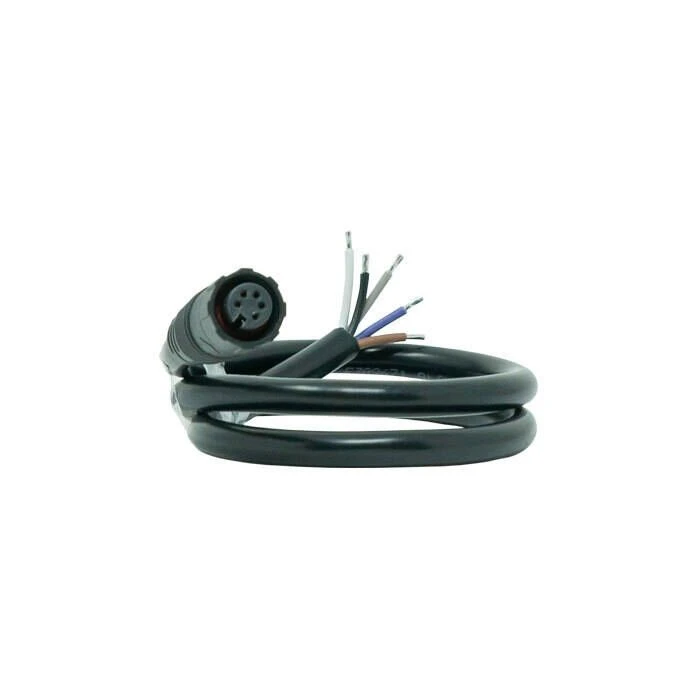

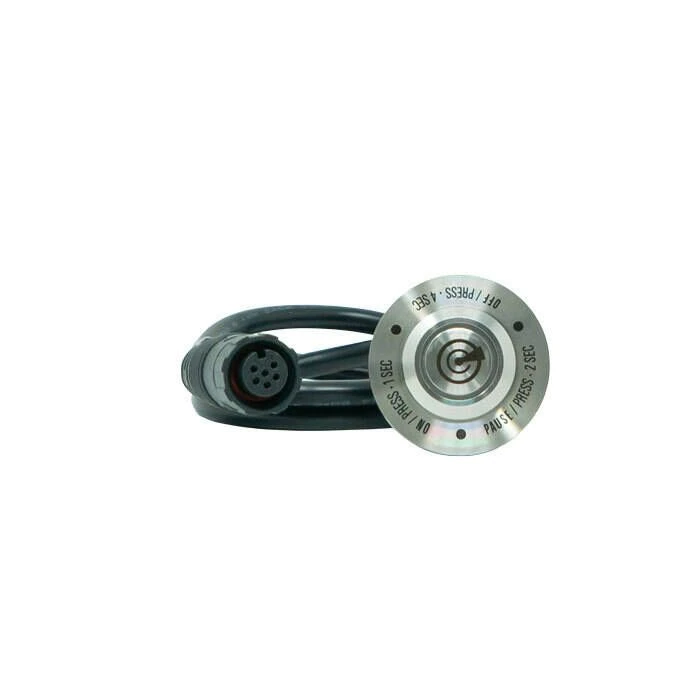

• Accessories (Included): ACR OLAS Tag, Power Connection Cable, Kill Switch Cord Connector, and Stainless Steel Control Switch
• Approvals: FCC, RED, CE, RoHS 2.0
