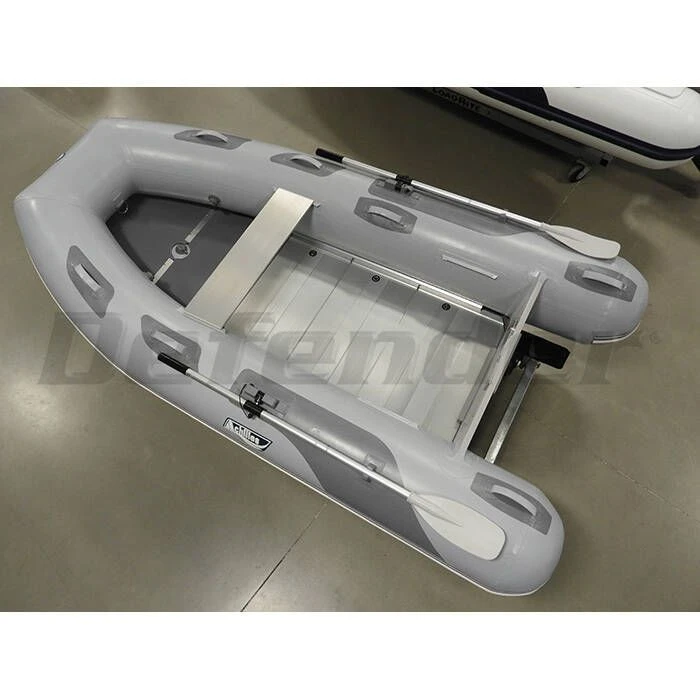

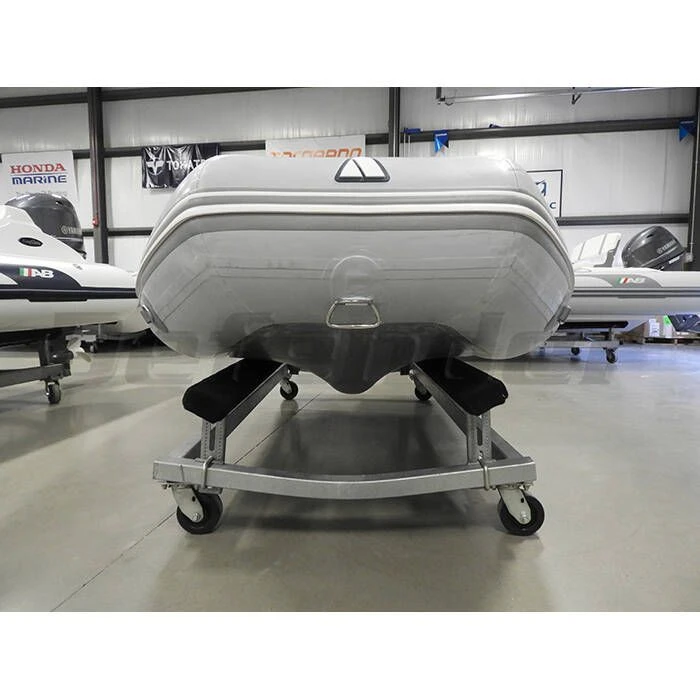

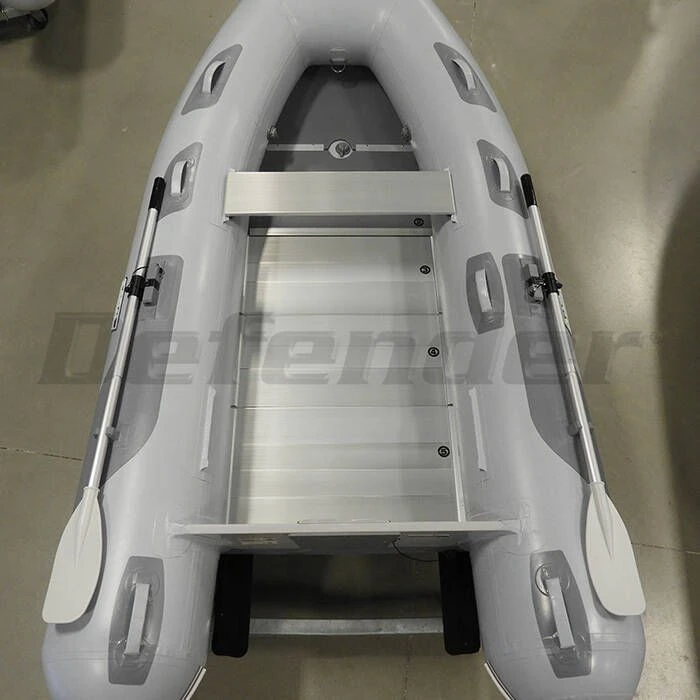

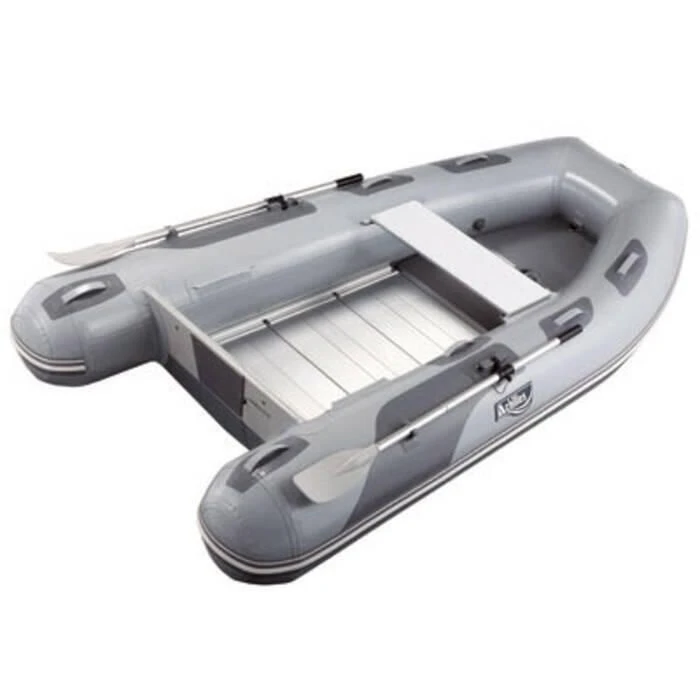

Achilles SPD-290E Aluminum Floor 9′ 6″ Boat – 2022

Features:

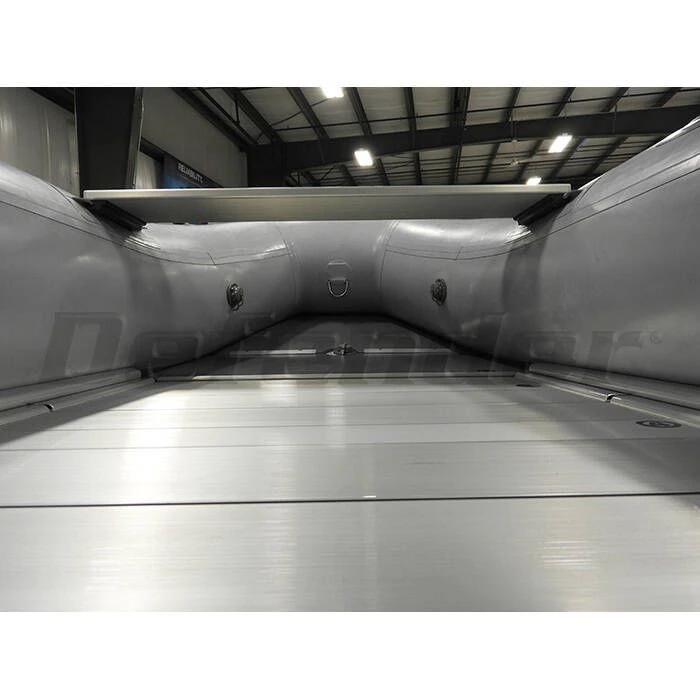

• Solid Panel Aluminum Floor (with Wood Bow Board)
• Aluminum Stringers and Floorboard Joints
• Rounded Tube Ends
• Full-Length Teardrop Rubbing Strake
• V-shaped Fiberglass Coated Transom
• Fold-down, Locking Oar System
  • Includes (2) Two Piece “Breakdown” Aluminum Oars, Bow Handle
• Towing Bridle D-rings (Port and Starboard)
• Interior Bow Lifting D-ring
• Removable Aluminum Rowing Seat
• Extra Seat Attachment Location for Extra Seat or as an Alternate Seat Location
• Protective Motor Clamp Plate
• Protective Pad for Fuel Tank

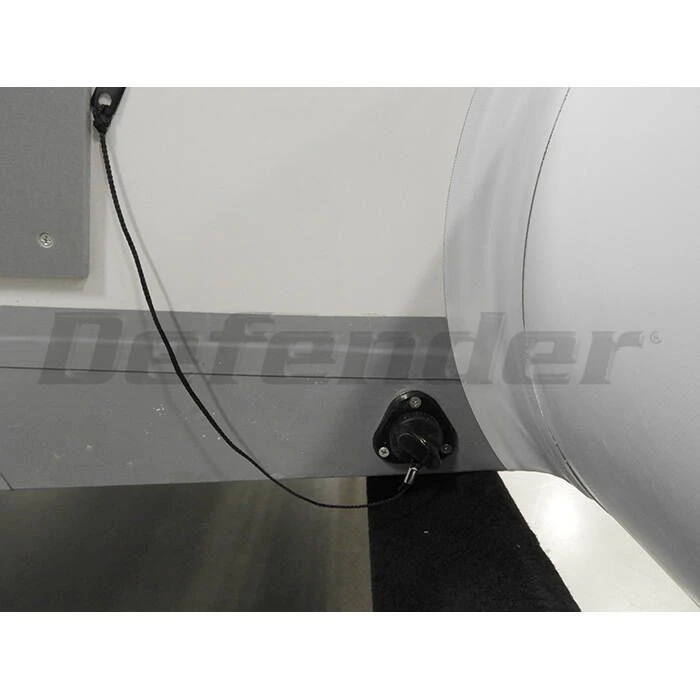

• Self-Bailer Valve
• Foot Pump
• Carry Bag and Repair Kit

Specifications:

• Length: 9′ 6″
• Beam: 5′ 2″
• Weight: 106 lbs
• Capacity: (4) Persons or 1100 lbs
• Maximum Motor 8 hp (Maximum Motor Weight: 88 lbs)
• Manufacturer Recommends 6 hp (15″ Shaft)
• Tube Diameter 17″
• Separate Air Chambers: (2) + Air Keel
• Stowed Dimensions: 3′ 9″ x 1′ 8″ x 1′ 1″
• Fabric Type: Achilles CSM (Hypalon)
• Factory Warranty: 5 years. Warranty begins on date of purchase.
