Achilles LSI-330E Air Floor 10′ 8″ Boat – 2023

Features:

• Removable Achilles CSM (hypalon) drop-stitch air firm floor
• Rounded tube ends
• Full-length teardrop rubbing strake
• V-Shaped fiberglass coated transom

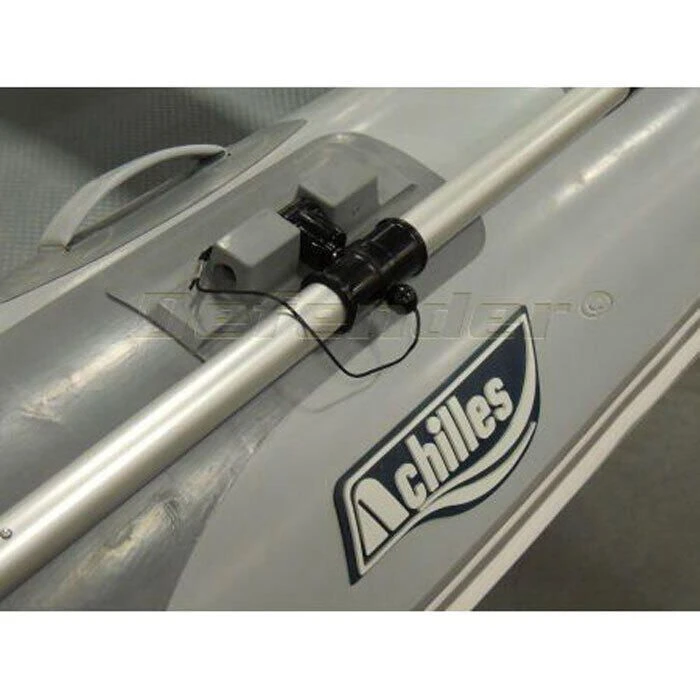

• Fold-down, locking oar system
• Includes (2) two piece “breakdown” aluminum oars
• Bow handle
• Towing bridle D-rings (port and starboard)
• Interior bow lifting D-ring

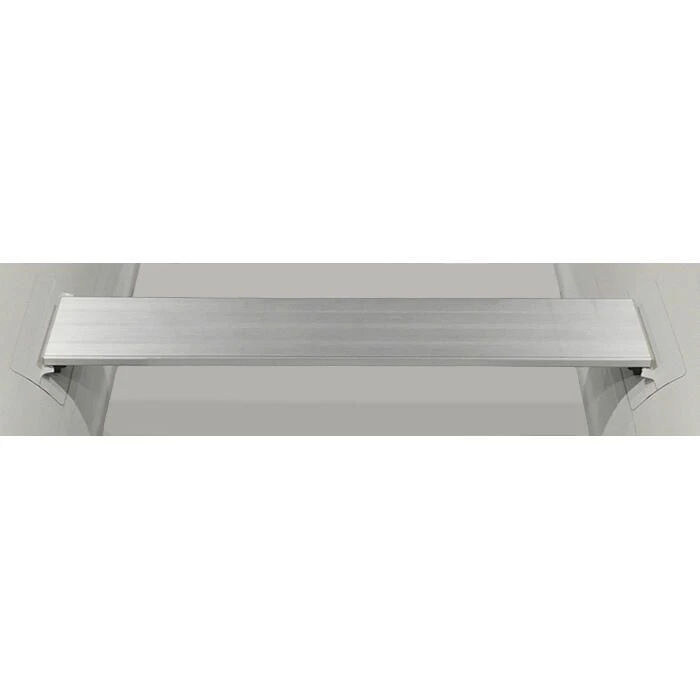

• Removable aluminum rowing seat
• Extra seat attachment location for extra seat or as an alternate seat location
• Rear carry handles
• Protective motor clamp plate

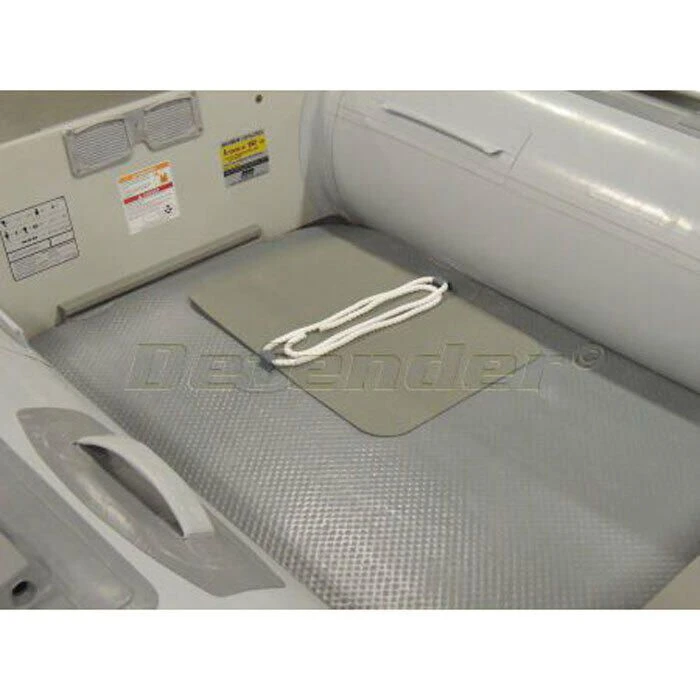

• Protective pad for fuel tank
• Self-bailer valve
• High volume/high pressure foot pump with pressure gauge
• Carry bag and repair kit

Specifications:

• Length: 10′ 8″
• Beam: 5′ 6″
• Weight: 86 lbs
• Capacity: (5) Persons or 1,340 lbs
• Maximum motor: 15 HP (maximum motor weight: 110 lbs)
• Manufacturer recommends: 10 HP (15″ shaft)
• Tube diameter: 18″
• Separate air chambers: (3) + floor + air keel
• Stowed dimensions: 4′ 1″ x 1′ 11″ x 10″
• Fabric type: Achilles CSM (hypalon)
• Four-layer seam construction
• Factory Warranty: 5 years. Warranty begins on date of purchase.

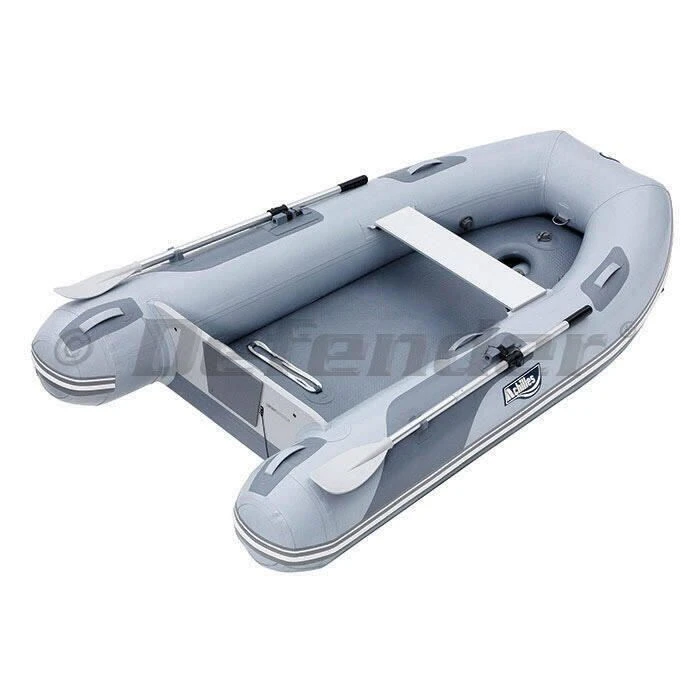

Note: Images are for reference only. LSI-290E grey model shown for illustration purposes
