Achilles LSI-260E Air Floor 8′ 6″ Boat – 2023

Features:

• Removable Achilles CSM (Hypalon) Drop-Stitch Air Firm Floor
• Rounded Tube Ends
• Full-Length Teardrop Rubbing Strake
• V-Shaped Fiberglass Coated Transom

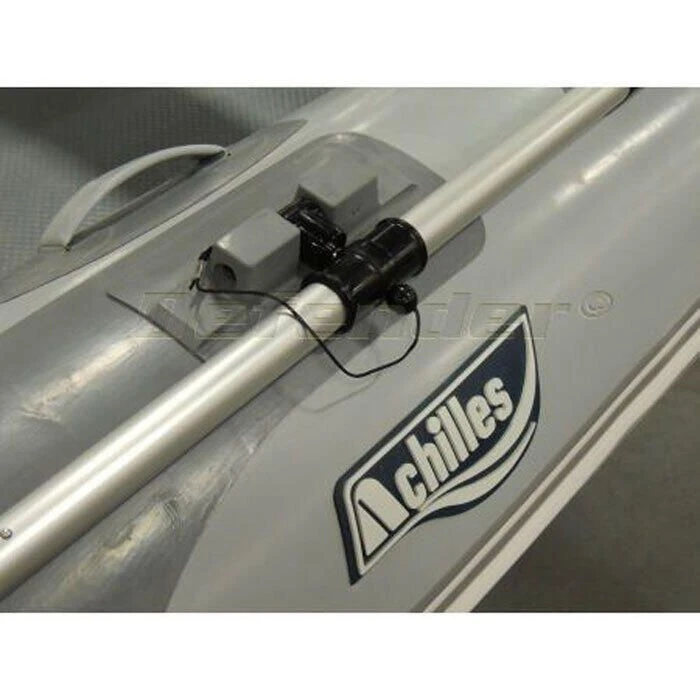

• Fold-Down, Locking Oar System
• Includes (2) Two Piece “Breakdown” Aluminum Oars
• Bow Handle
• Towing Bridle D-Rings (Port and Starboard)
• Interior Bow Lifting D-Ring

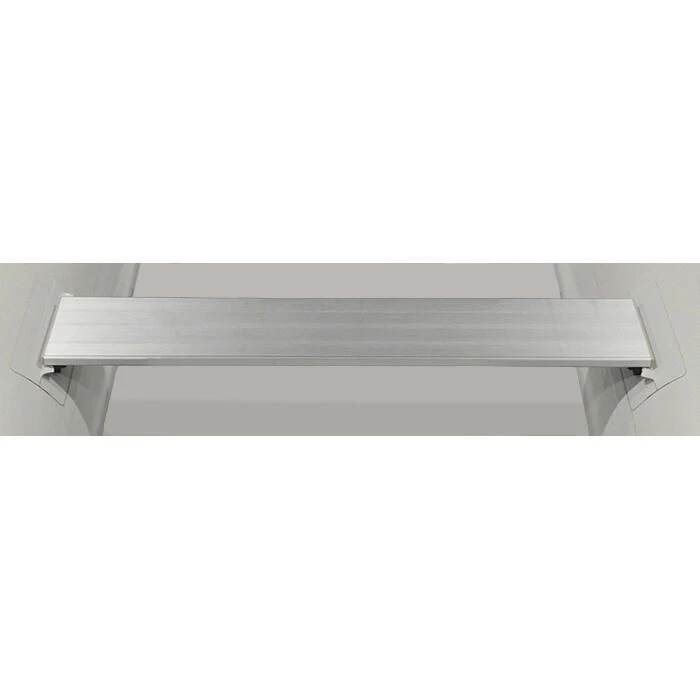

• Removable Aluminum Rowing Seat
• Protective Motor Clamp Plate
• Protective Pad for Fuel Tank
• Self-Bailer Valve
• Rear Carry Handles
• High Volume / High Pressure Foot Pump with Pressure Gauge
• Carry Bag and Repair Kit

Specifications:

• Length: 8′ 6″
• Beam: 4′ 9″
• Weight: 64 lbs
• Capacity: (4) Persons or 820 lbs
• Maximum Motor: 6 hp (Maximum Motor Weight: 66 lbs)
• Manufacturer Recommends: 4 hp (15″ Shaft)
• Tube Diameter: 15.5″
• Separate Air Chambers: (2) + Floor + Air Keel
• Stowed Dimensions: 3′ 5″ x 1′ 10″ x 11″
• Fabric Type: Achilles CSM (Hypalon)
• Four-layer seam construction
• Factory Warranty: 5 years. Warranty begins on date of purchase.

Achilles Owner’s Manual
