Achilles LSI-230E Air Floor 7′ 7″ Boat – 2023

Features:

• Removable Achilles CSM (hypalon) drop-stitch air firm floor
• Rounded tube ends
• Full-length teardrop rubbing strake
• Painted wood transom

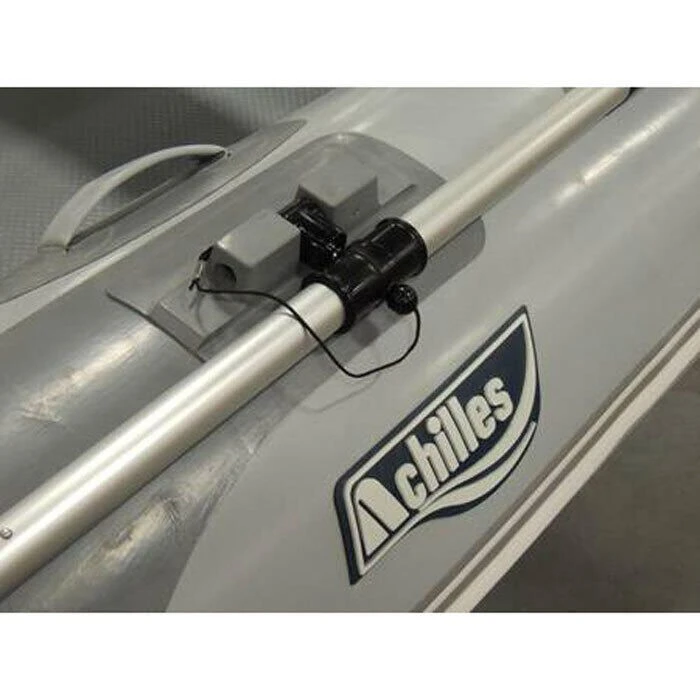

• Fold-down, locking oar system
• Includes (2) two piece “breakdown” aluminum oars
• Towing bridle D-rings (port and starboard)
• Bow carry handle
• Rear carry handles
• Removable rowing seat
• Protective motor clamp plate
• Protective pad for fuel tank
• Self-bailer valve
• High volume/high pressure foot pump with pressure gauge
• Carry bag and repair kit

Specifications:

• Length: 7′ 7″
• Beam: 4′ 9″
• Weight: 55 lbs
• Capacity: (2) Persons or 710 lbs
• Maximum motor: 4 HP (maximum motor weight: 55 lbs)
• Manufacturer recommends: 4 HP (15″ shaft)
• Tube diameter: 15.5″
• Separate air chambers (2) + floor + keel
• Stowed dimensions: 3′ 5″ x 1′ 10″ x 11″
• Fabric type: Achilles CSM (hypalon)
• Four-layer seam construction
• Factory Warranty: 5 years. Warranty begins on date of purchase.

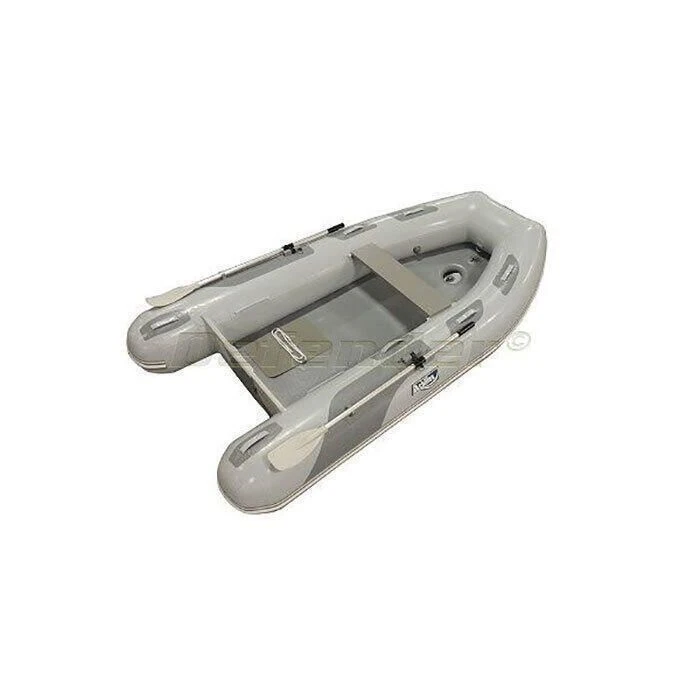

Note: Images are for reference only. LSI-290E grey model shown for illustration purposes
