Achilles HB-335AX Aluminum RIB 11′ Boat – 2022

Features:

• Aluminum Hull (Powder Coated) with Keel Guard
• Full Deck Liner with Non Skid Patches

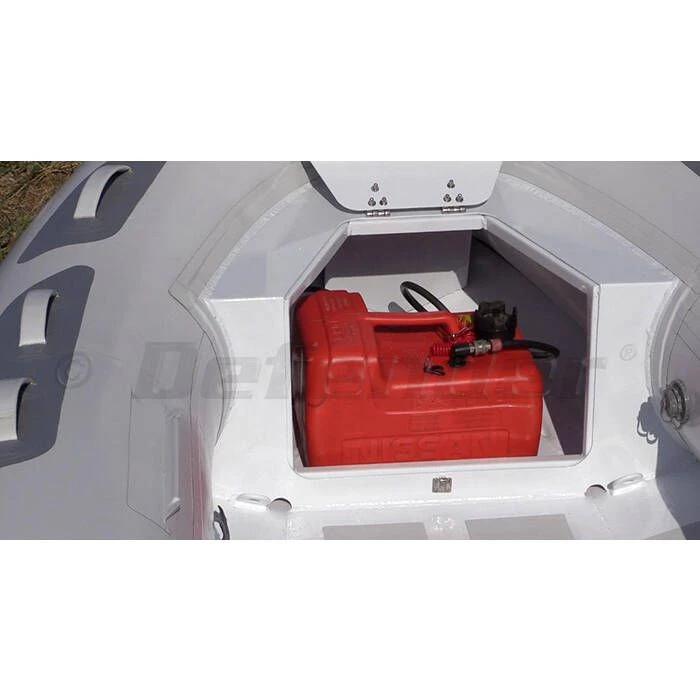

• Bow Locker
• Heavy Duty Full Length Tear Drop Rub Strake
• Towing Bridle D-rings (Port and Starboard)
• Davit Lifting Points (4-point lift system)
• Welded Bow Eye
• Molded Bow and Stern Carry Handles
• Fold-Down, Locking Oar System
  • Includes (2) Two Piece “Breakdown” Aluminum Oars
  • Interior Oar Straps
• Removable Aluminum Rowing Seat
• Extra Seat Attachment Location for Extra Seat or as an Alternate Seat Location
• Protective Motor Clamp Plate
• Self-Bailer Valve
• Foot Pump
• Repair Kit

Specifications:

• Length: 11′
• Beam: 5′ 7″
• Weight: 175 lbs
• Capacity: 5 Persons or 1210 lbs
• Maximum Motor 25 hp (Maximum motor weight 154 lbs)
• Manufacturer recommends 20 hp (15″ Shaft)
• Tube Diameter: 17″
• Separate Air Chambers (3)
• Stowed Dimensions 10′ 2″ x 3′ 7″ x 1′ 10″
• Fabric Type: Achilles CSM (Hypalon)
• Factory Warranty: 5 years. Warranty begins on date of purchase.

Note: Underdeck fuel routing may require longer or custom made fuel lines. Keep in mind primer bulb location is important.

Achilles Owner’s Manual
