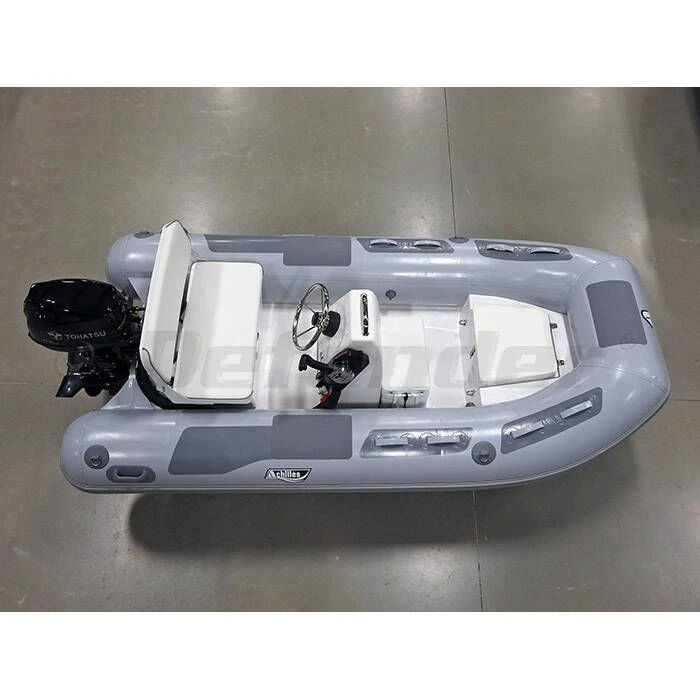

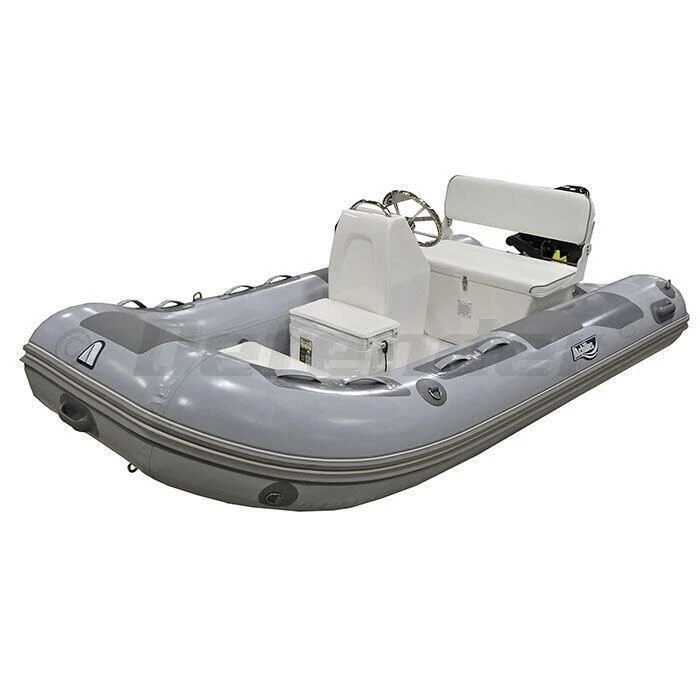

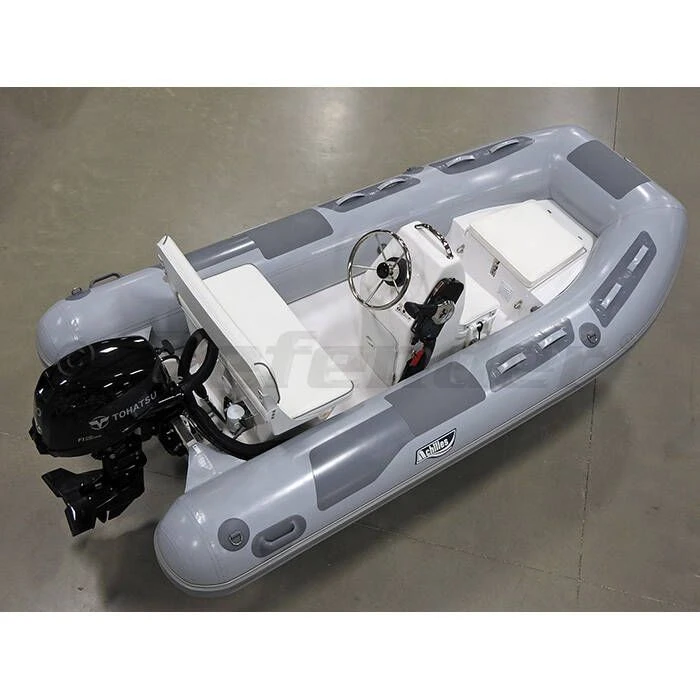

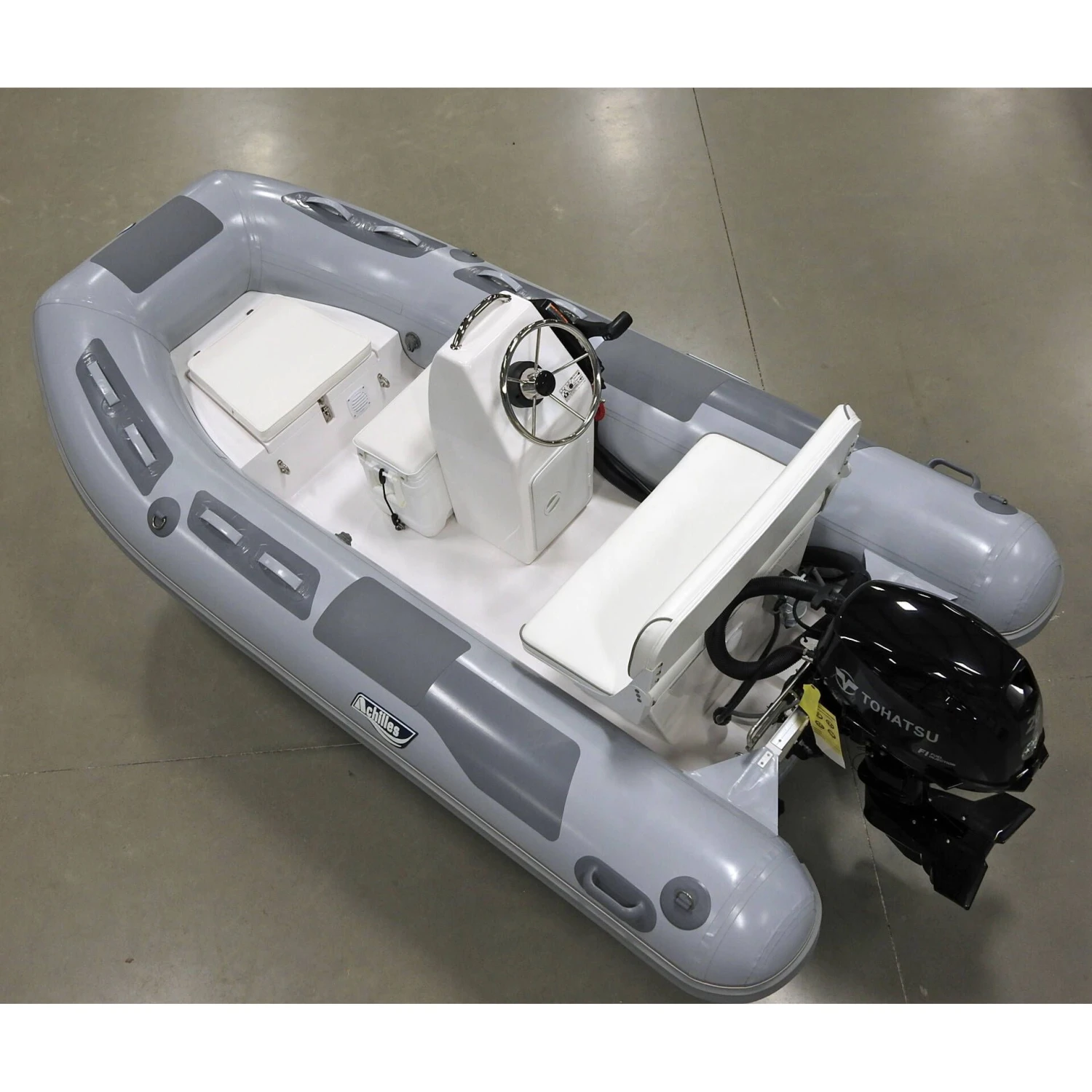

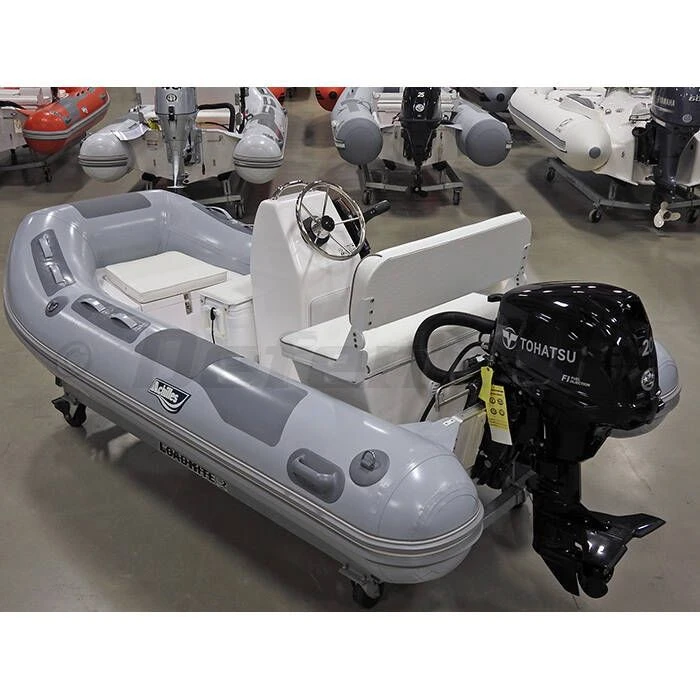

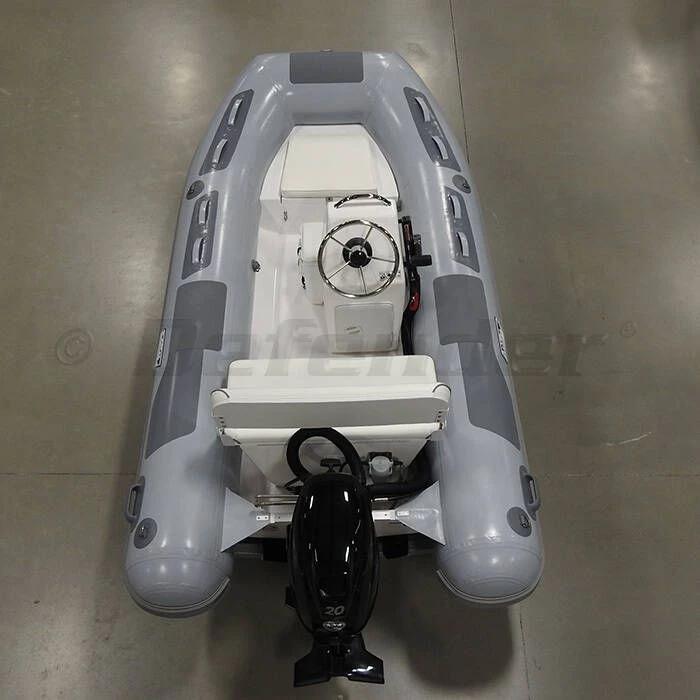

Achilles HB-315DX Fiberglass RIB 10′ 4″ Boat With Tohatsu 20 HP Motor – MFS20 – 2022

Package Features:

• Approximate Rigged Weight: 425 lbs (Includes Battery and Removable Fuel Tank)
• Fiberglass Steering Console with Stainless Wheel
• Fiberglass Bench Seat
• Stainless Steel Console Grab Rail
• White Rigid Medium V Fiberglass Hull
• Molded-In Bow Locker with Hatch and Custom Cushion
• 25 Quart Cooler with Custom Cushion
• Battery and Battery Box
• Stingray Hydrofoil to Increase Stern Lift
• Custom Boarding Step Pads on Tubes, (Bow, Port & Starboard)
• Fore & Aft D-Rings for Temporary Docking/Tying Up
• Davit Lifting Points (4-Point Lift System)
• Heavy Duty Full Length Tear Drop Rub Strake
• Stainless Bow Eye
• Emergency Paddle with Boat Hook T-Grip Handle
• Fuel/Water Separator
• Inflation Pump
• Repair Kit
• Includes rigging components, hardware and prep

Boat Specifications:

• Length: 10′ 4″
• Beam: 5′ 5″
• Boat Weight: 176 lbs
• Capacity: (5) Persons or 1300 lbs
• Tube Diameter: 17″
• Separate Air Chambers (3)
• Fabric Type: Achilles CSM (Hypalon)
• Color: Medium Gray
• Factory Warranty: 5 years. Warranty begins on date of purchase.

Engine Specifications:

• Engine: Tohatsu MFS20EEPTS 20 hp EFI 4-Stroke
• Engine Weight: 114 lbs
• Steering: Remote Steering
• Starting Method: Rope & Electric Start
• Tilt: Power Tilt
• Propeller: 3-Blade Propeller
• Fuel Tank: 3 Gallon Fuel Tank and Fuel Line

Achilles Owner’s Manual

Tohatsu MFS20 Owner’s Manual (8.88 MB)
