Achilles HB-315DX Fiberglass RIB 10′ 4″ Boat With Honda 20 HP Motor – BF20 – 2023

Features:

• Approximate rigged weight: 425 lbs
• (Includes battery and removable fuel tank)
• Fiberglass steering console with stainless wheel
• Fiberglass captain’s bench seat
• Stainless steel console grab rail
• White rigid deep “V” fiberglass hull
• Molded-in bow locker with hatch and custom cushion
• 25 quart cooler with custom cushion
• Battery with battery box
• Stingray Hydrofoil to increase stern lift
• Custom boarding step pads on tubes, (bow, port & starboard)
• Fore & aft D-rings for temporary docking/tying up
• Davit lifting points (4-point lift system)
• Heavy-duty full length tear drop rub strake
• Stainless bow eye
• Emergency paddle
• Fuel/water separator
• Inflation pump
• Repair kit
• Includes rigging components, hardware, and prep
• Optional navigation lights and bilge pump available

Boat Specifications:

• Length: 10′ 4″
• Beam: 5′ 5″
• Boat weight: 176 lbs
• Capacity: (5) Persons or 1,300 lbs
• Tube diameter: 17″
• Material: Hypalon
• Factory Warranty: 5 years. Warranty begins on date of purchase.

Engine Specifications:

• Engine: Honda BF20D3SRT (20 HP 4-stroke)
• Engine weight: 128 lbs
• Steering: Remote steering
• Starting method: Rope & electric start
• Tilt: Power tilt
• Propeller: 4-Blade aluminum propeller (9 1/4″ x 10″)
• Fuel tank: 3 gallon fuel tank and fuel line
• Factory Warranty: 5 years. Warranty begins on date of purchase.

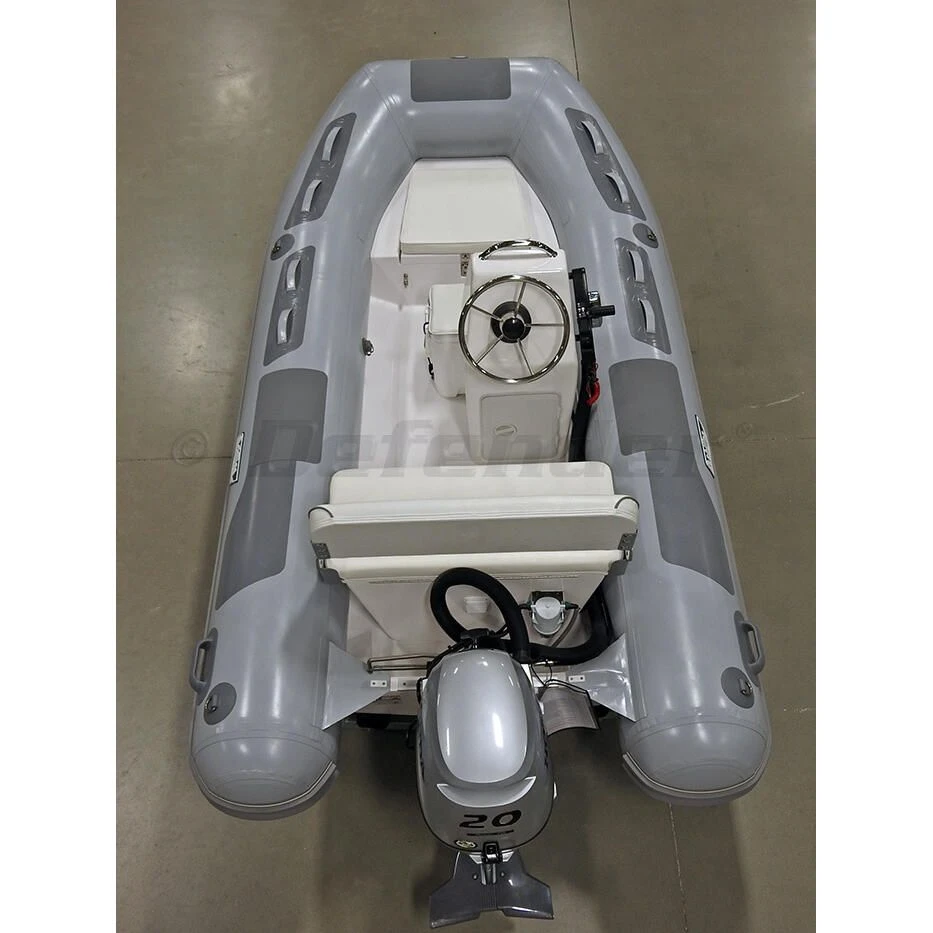

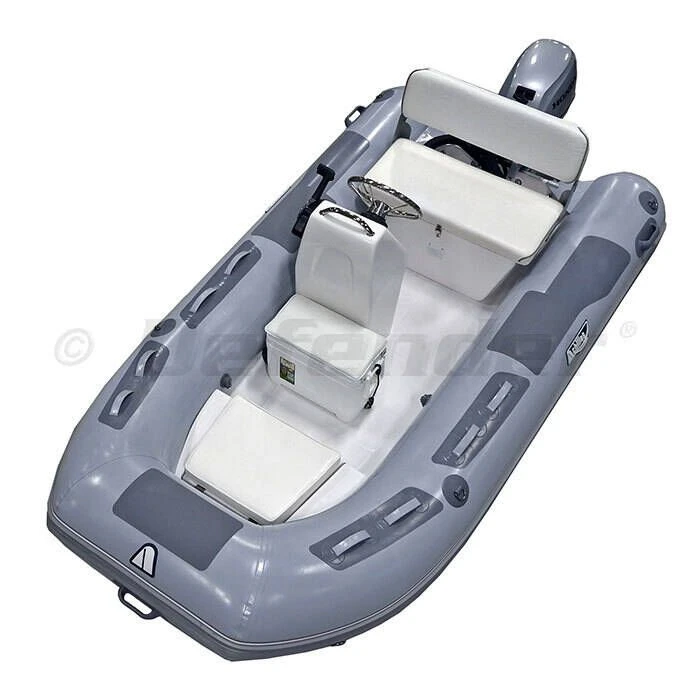

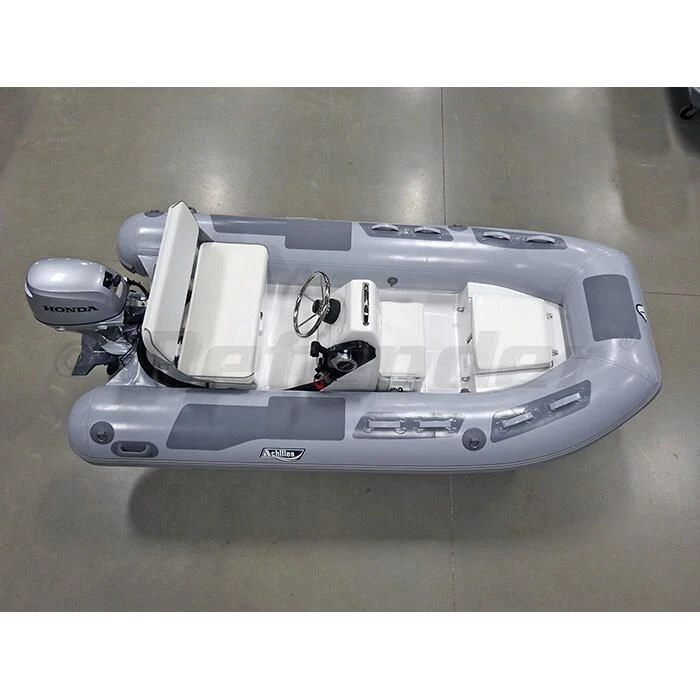

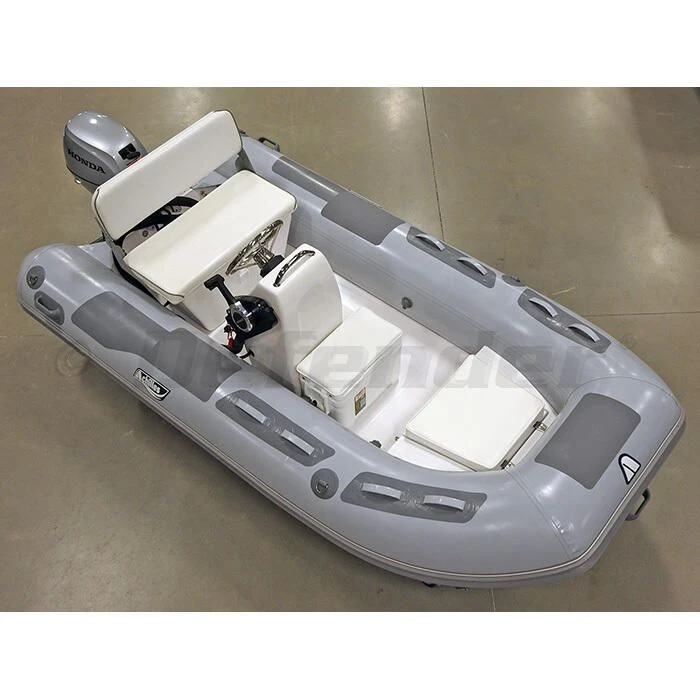

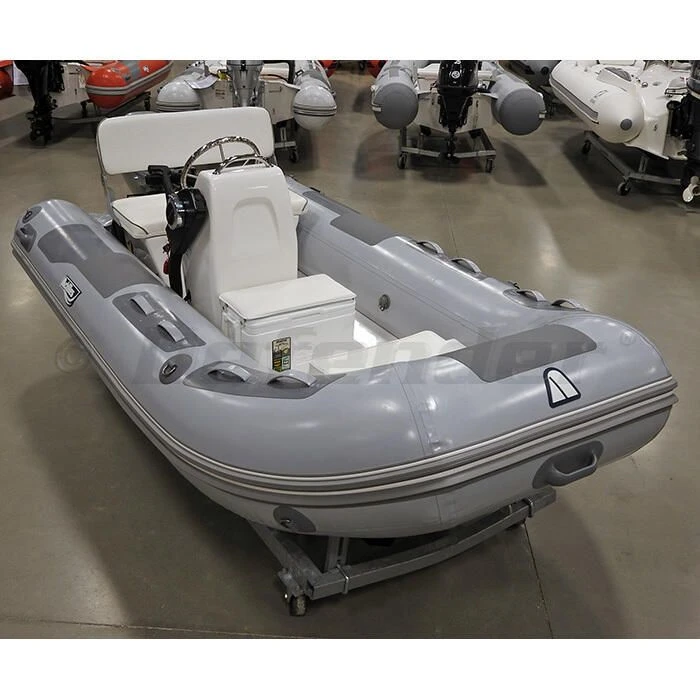

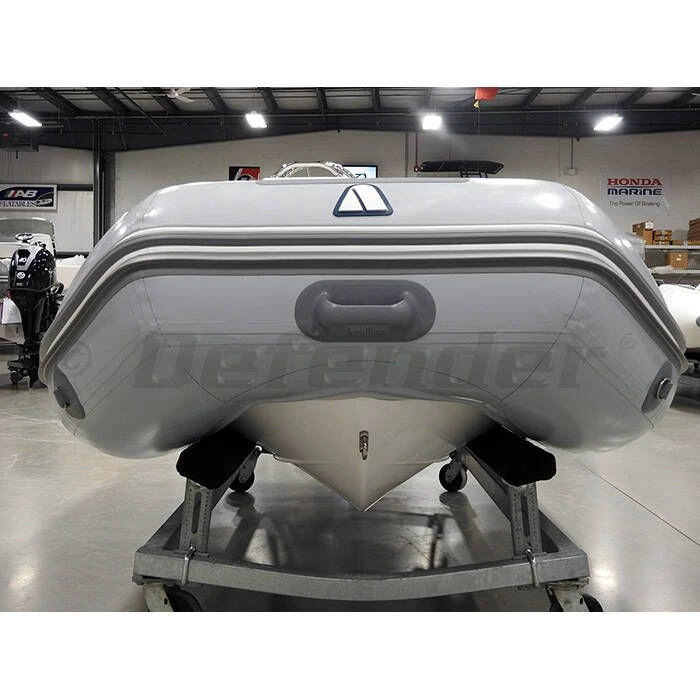

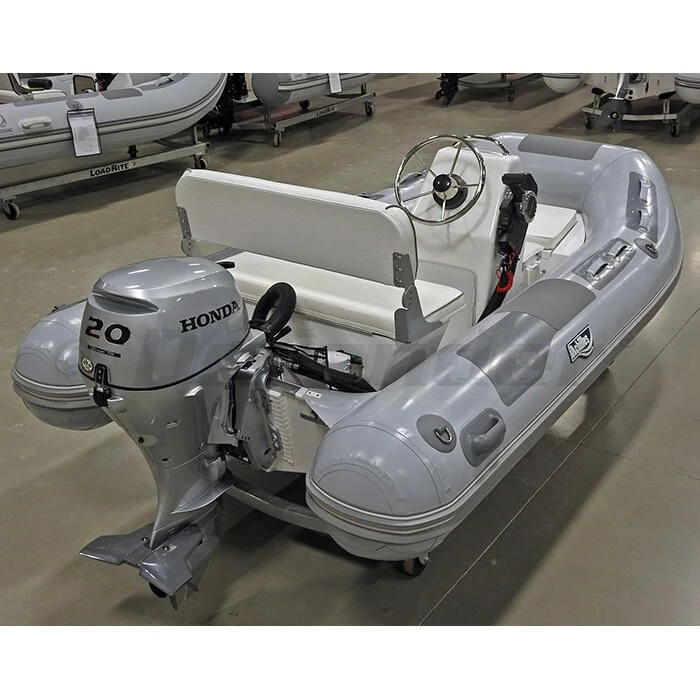

Note: Images are for reference only. Model shown with optional grey Aqua Traction (not included).

Achilles Owner’s Manual

Honda BF20 Owner’s Manual (8.98 MB)
