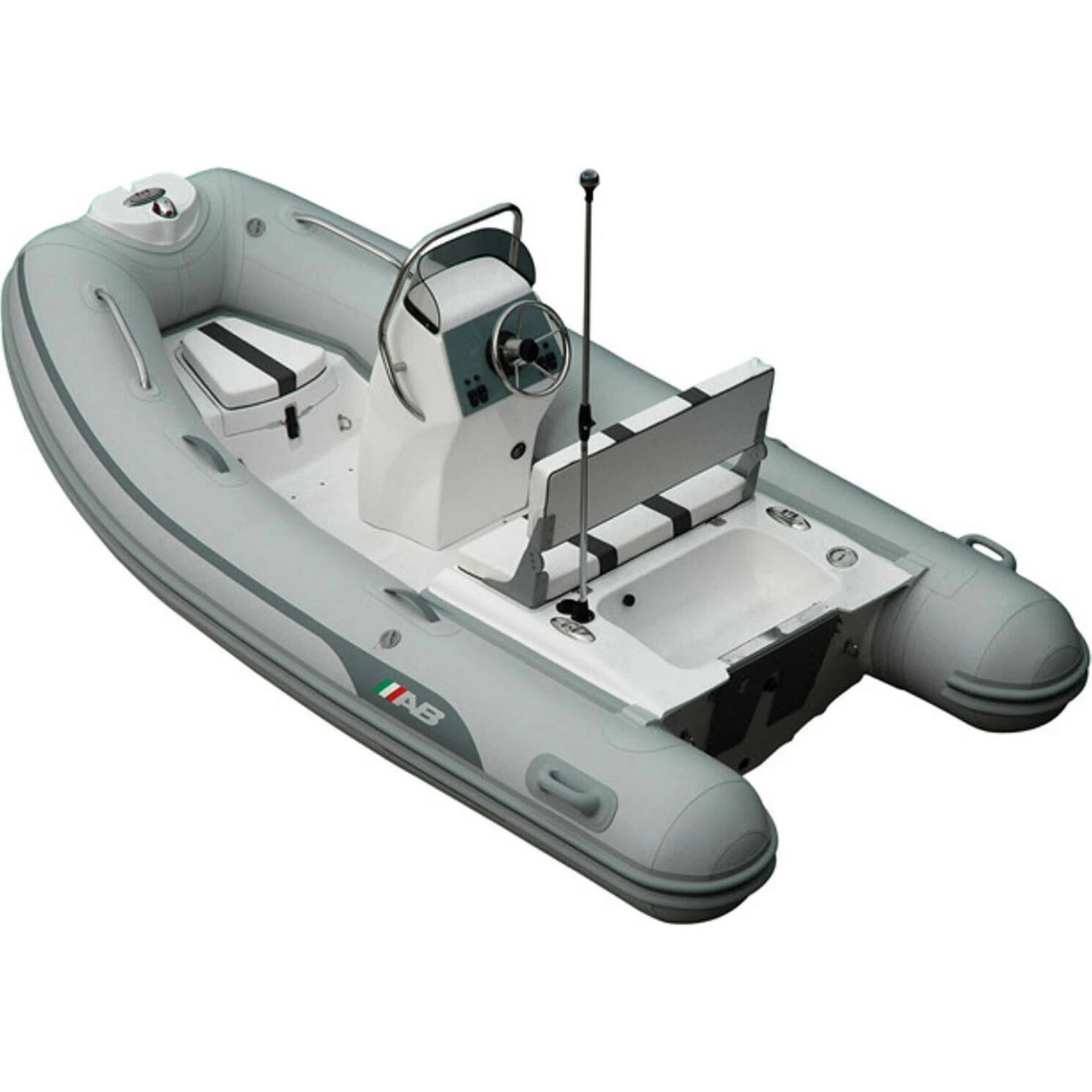

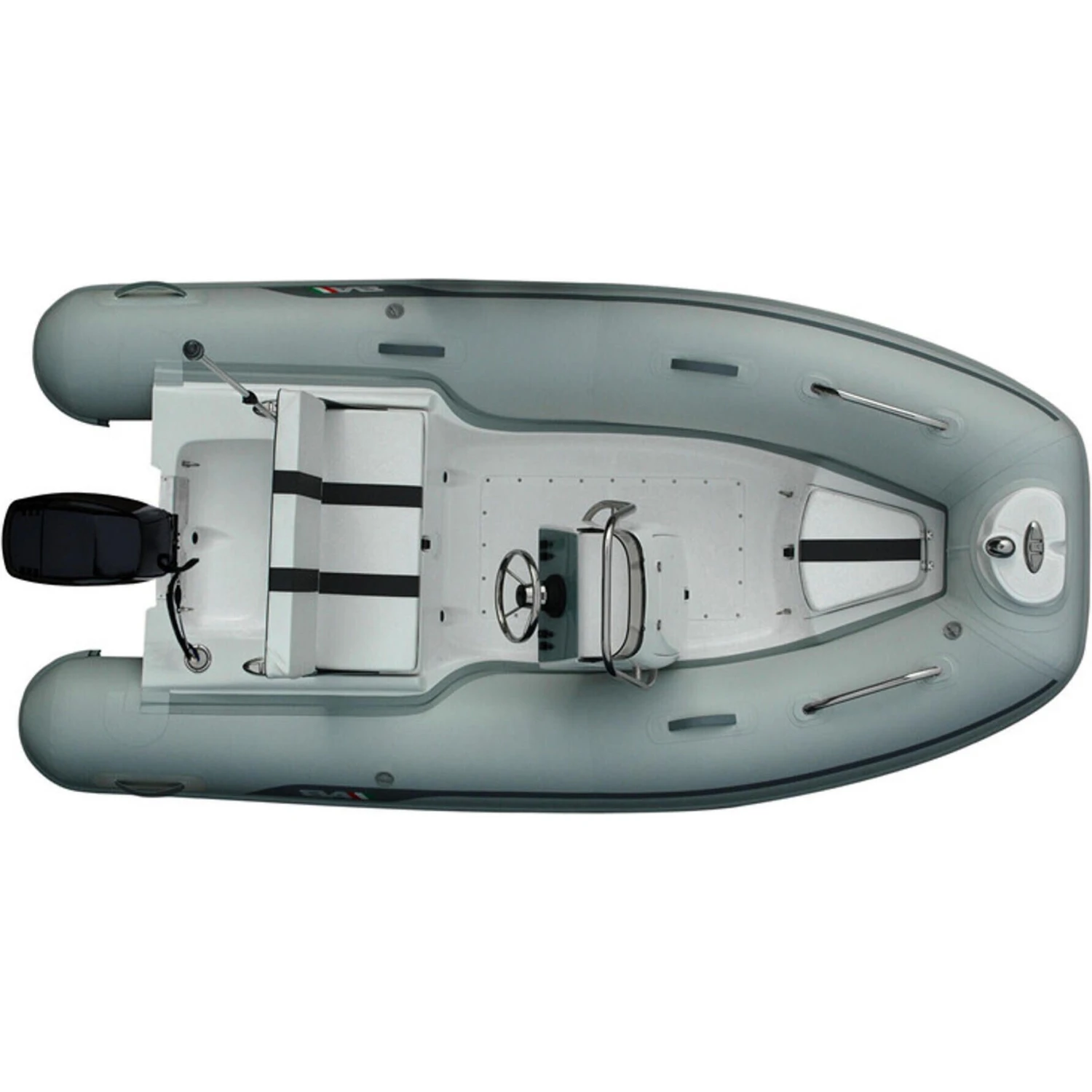

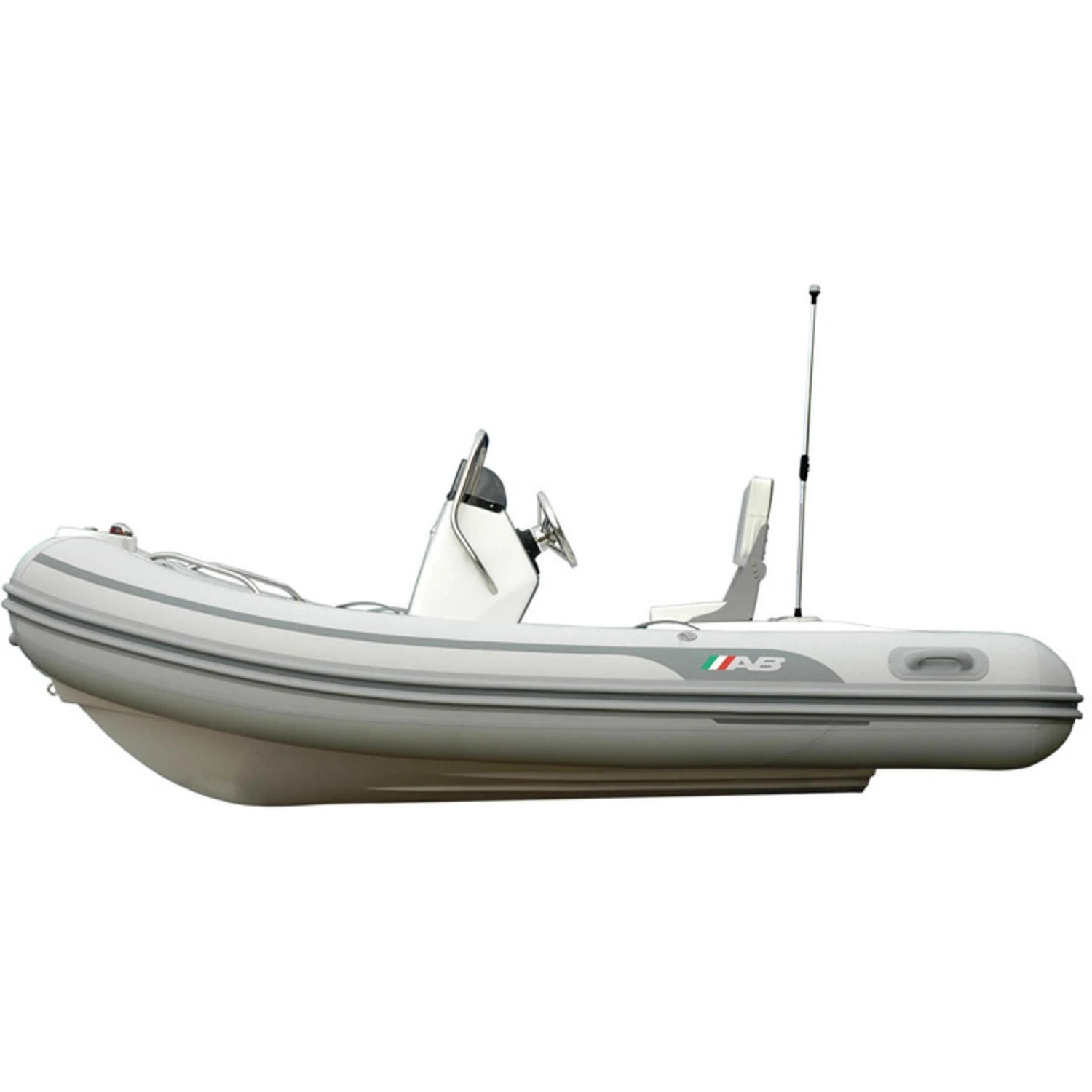

AB Inflatables Oceanus 11 VST Fiberglass RIB 11′ Boat With Yamaha 40 HP Motor – F40 – 2024

Features:

• Fiberglass deep “V” hull construction
• Yamaha digital multifunction guages
• Fiberglass bow step with backrest cushion
• Under deck wire harness routing
• Single raised rub strake
• Davit lifting points (4-point lift system)
• Automatic bilge pump
• Stainless steel fold down cleats (3)
• Material: Hypalon
• Fiberglass console
• Windshield with stainless grab rail
• No feedback steering helm with stainless steel wheel
• Molded-in helm seat with cushioned backrest and storage space
• Bow anchor locker with cushion
• Fuel/water separator
• Battery cut-off switch and battery storage
• Navigation lights and all around anchor light, LED
• Grab handles on tubes, stainless steel
• Bow eye, stainless steel
• Towing rings, stern
• Hand pump
• Repair kit

Specifications:

• Overall length: 11′ (3.35 m)
• Overall beam: 5′ 8″ (1,73 m)
• Inside length: 8’1″ (2.47 m)
• Inside beam: 2’9″ ( 0.84 m)
• Tube diameter: 17″ (0.43 m)
• Motor: Yamaha 40 HP
• Number of chambers: 3
• Capacity: 5 persons or 704 lbs
• Weight: 370lb (168 kg)
• 10 Gal (38 L) integrated fuel tank
• Recommended outboard shaft length: 20″ (50.8 cm)
• Factory Warranty: 10 years. Warranty begins on date of purchase.

AB Inflatables Owner’s Manual (12.39 MB)

Data Sheet

Chock and Davit Information

Dimensions Diagram

Yamaha F40 Owner’s Manual (9.43 MB)
