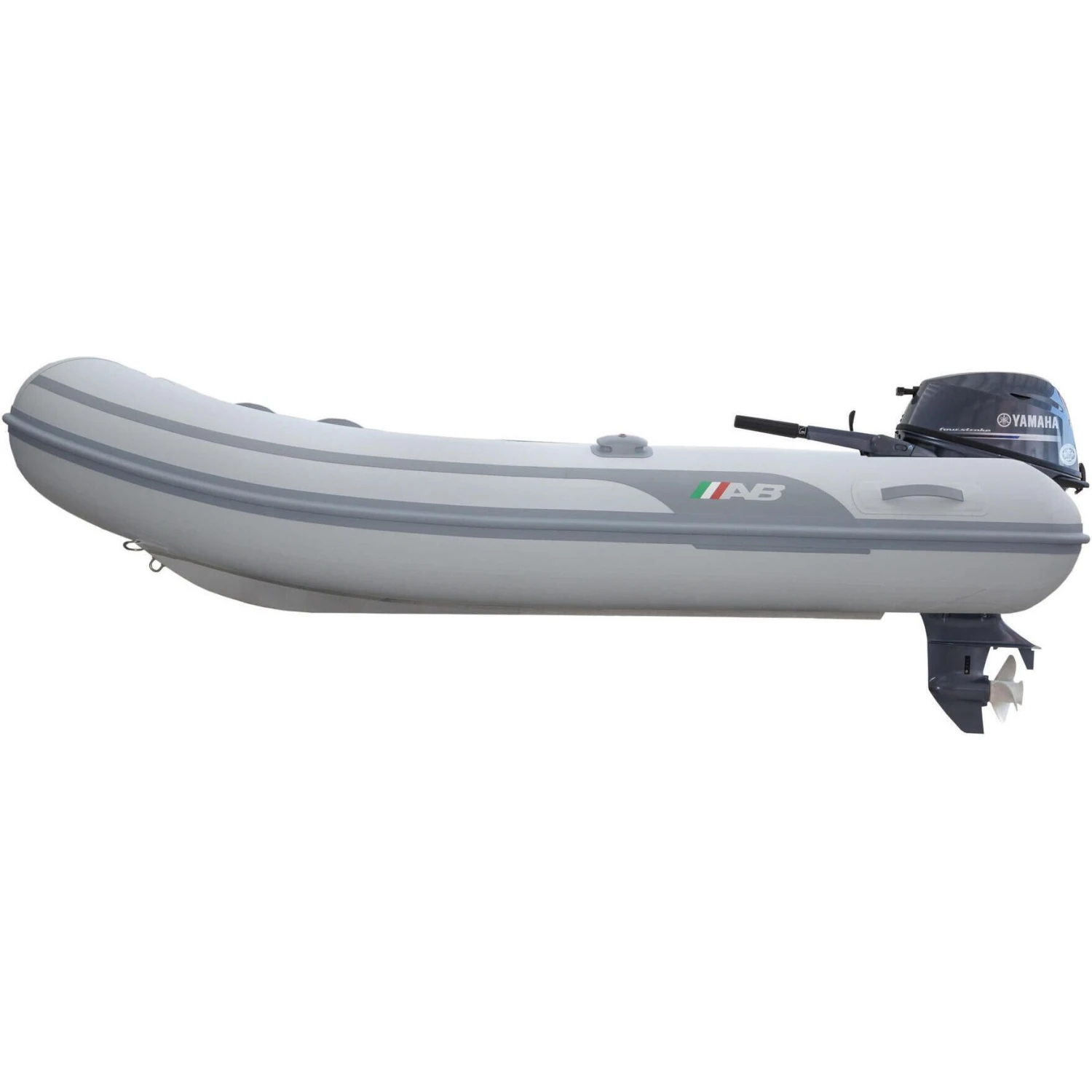

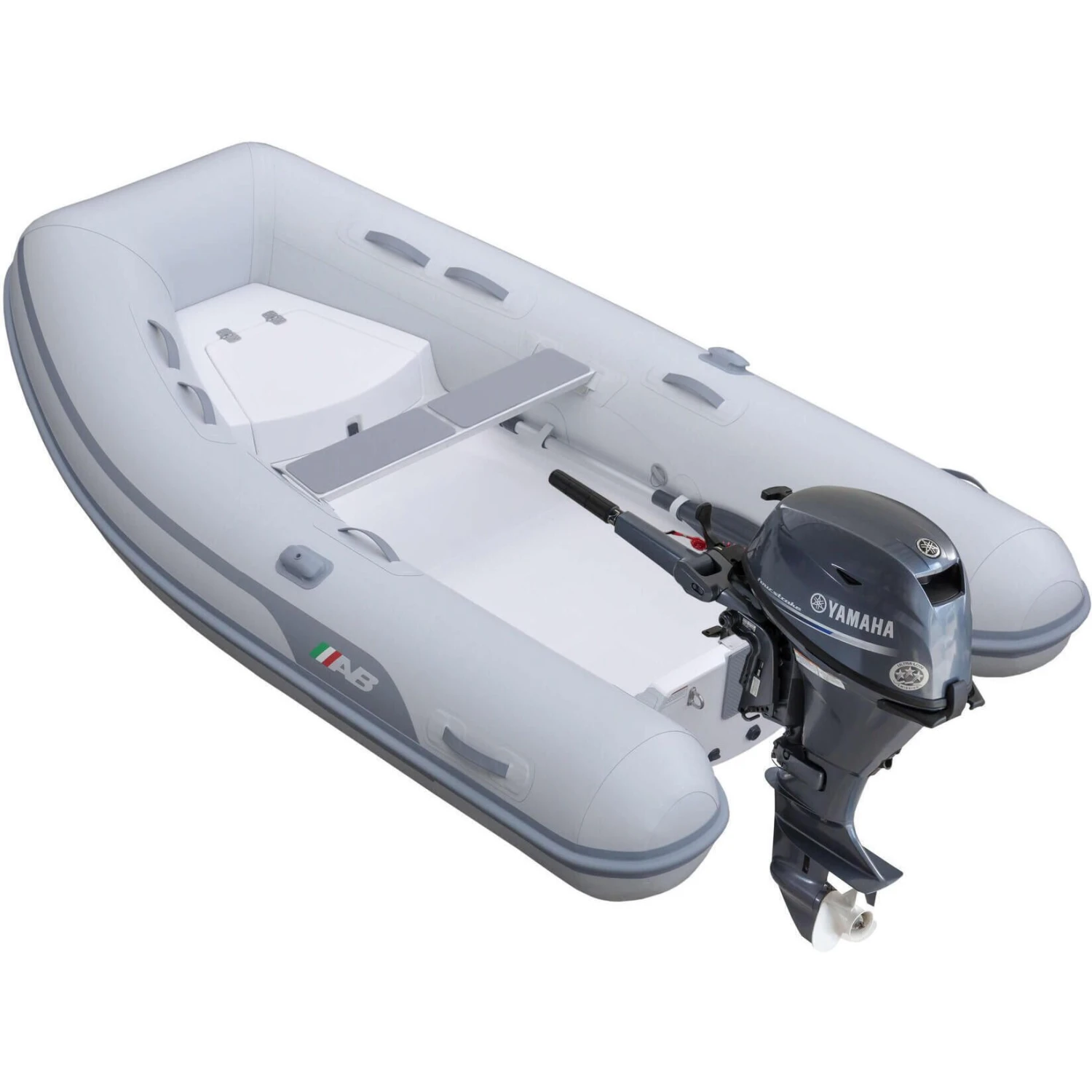

AB Inflatables Navigo 9 VS Fiberglass RIB 9′ 6″ Boat – 2024

Features:

• Fiberglass deep “V” hull with flat deck
• Raised single rub rail
• Davit lifting points (4-point lift system)
• Bow locker with vent (accommodates a 6 Gal triangular bow fuel tank)
• Fuel line chase (exits on starboard transom knee)
• Bow handle
• 2 Side lifting handles
• Stainless steel bow eye
• Tow rings (2 bow and 2 stern)
• Removable seat
• Oar locks
• Telescopic aluminum oars
• Velcro oar holders for inside storage
• Non-skid deck, diamond pattern
• Deck drain with plug
• Hand pump
• Repair kit

Specifications:

• Length: 9′ 6″
• Beam: 5′ 7″
• Weight: 152 lbs (weight with bow locker)
• Capacity: 4 Persons or 1358 lbs
• Maximum Motor: 15 HP (Maximum motor weight 121 lbs)
• Manufacturer Recommends: 9.9 HP (15″ shaft)
• Tube diameter: 17″
• Separate Air Chambers (3+1)
• Stowed Dimensions: 106″ x 43″ x 18″
• Fabric Type: Hypalon – CSM
• Factory Warranty: 10 years. Warranty begins on date of purchase.

Notes:

• Images are for reference only, outboard motor not included
• Underdeck fuel routing may require longer or custom made fuel lines. Keep in mind primer bulb location is important

Owner’s Manual (12.39 MB)

Data Sheet

Chock and Davit Information

Dimensions Diagram
