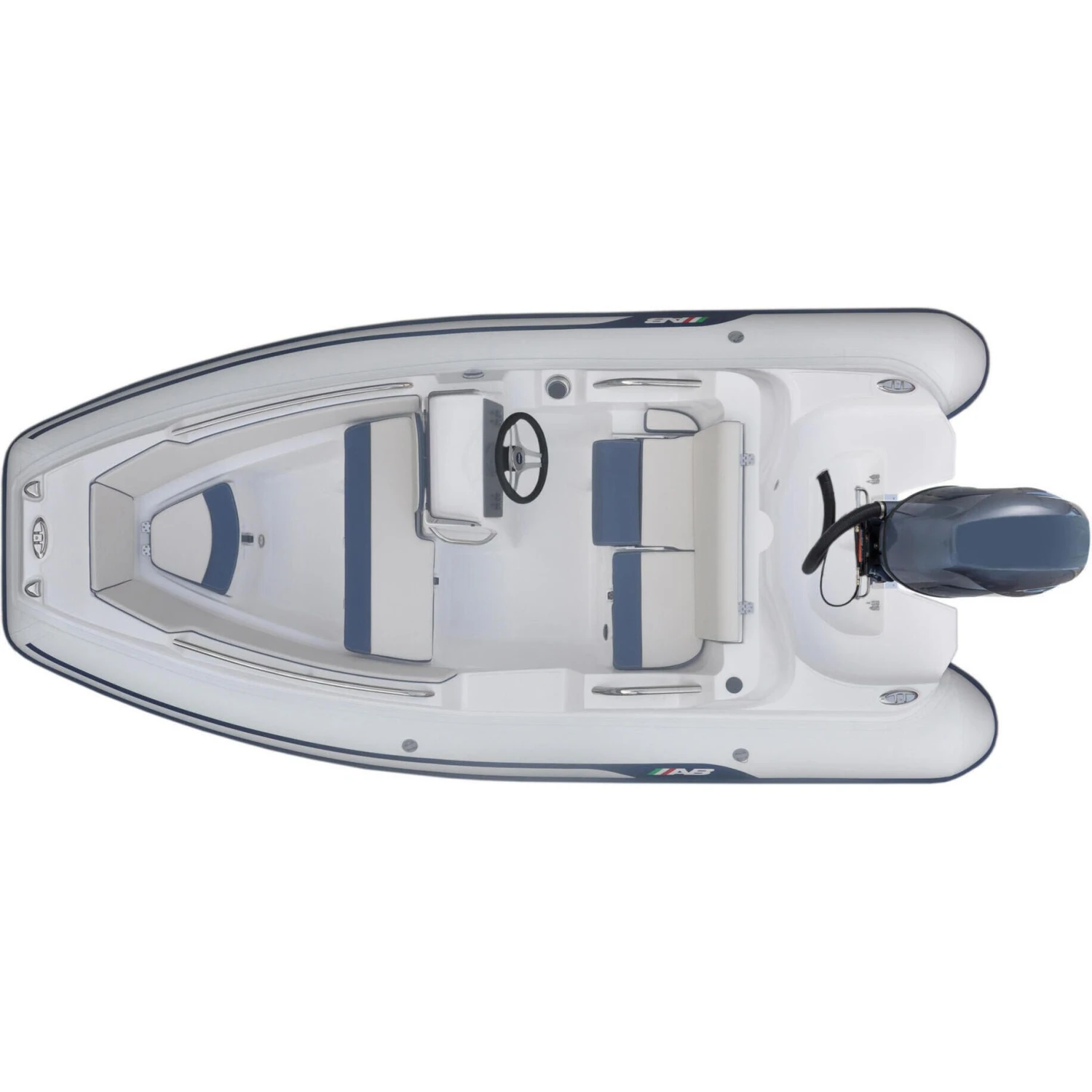

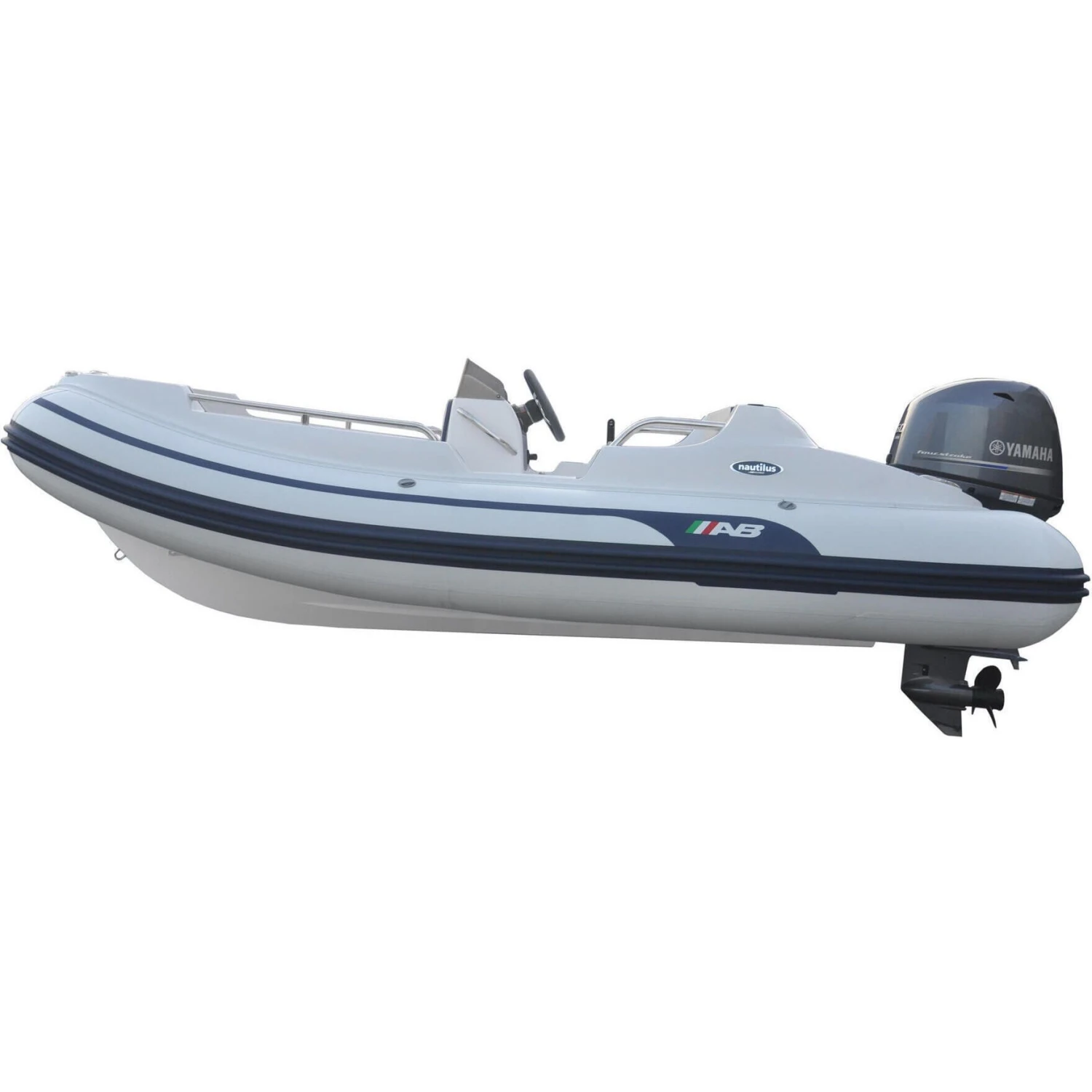

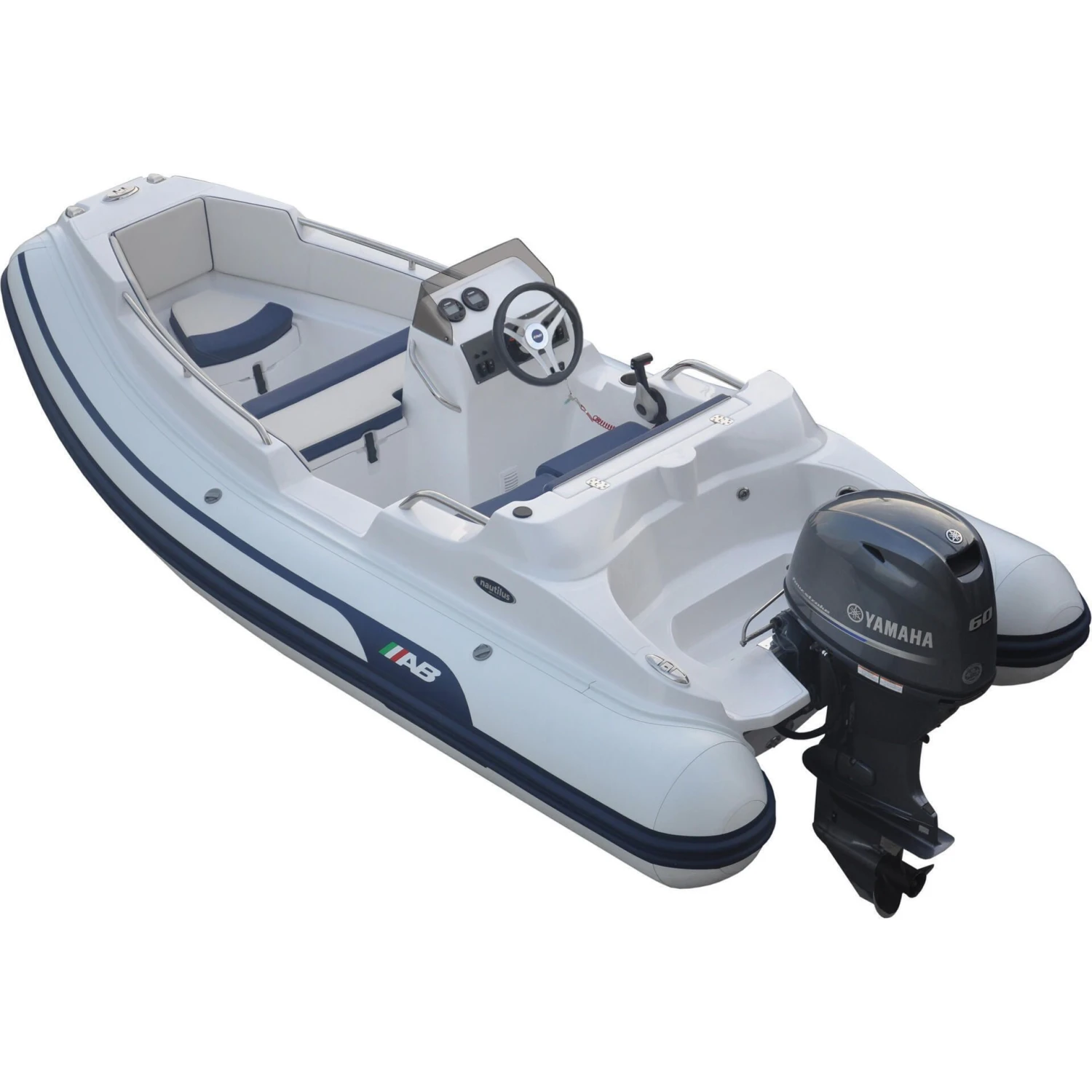

AB Inflatables Nautilus 13 DLX Fiberglass RIB 13′ Boat With Yamaha 60 HP Motor – F60 – 2024

Features:

• Fiberglass deep “V” hull construction
• Digital multifunction tachometer and speedometer
• Under deck wire harness routing
• Single solid rub strake
• Davit lifting points (3-point lift system)
• Automatic bilge pump
• Integrated stainless bow rails
• Stainless steel fold down cleats
• Molded-in fiberglass console with no feedback steering system
• Molded-in helm seat with cushioned backrest and storage space
• Molded-in bow storage compartment / anchor locker with cushion
• Fuel/water separator
• Battery cut-off switch and battery storage
• Battery charger
• LED navigation lights
• Stainless steel bow eye
• Stainless steel towing eyes
• Transom tie-downs installed
• Hand pump
• Repair kit

Specifications:

• Length: 13′ 0″
• Beam: 6′ 5″
• Hull Weight: 612 lbs
• Motor: Yamaha 60 HP
• Capacity: (5) Persons or 1593 lbs
• Tube diameter: 18″
• Separate air chambers: (3)
• 15 Gal underdeck aluminum fuel tank
• Fabric Type: Hypalon – CSM
• Color: White with Blue Trim
• AB Factory Warranty: 10 years. Warranty begins on date of purchase.
• Yamaha Factory Warranty: 3 years. Warranty begins on date of purchase.

AB Inflatables Owner’s Manual (12.39 MB)

Data Sheet

Chock and Davit Information

Dimensions Diagram

Yamaha F60 Owner’s Manual (9.37 MB)
