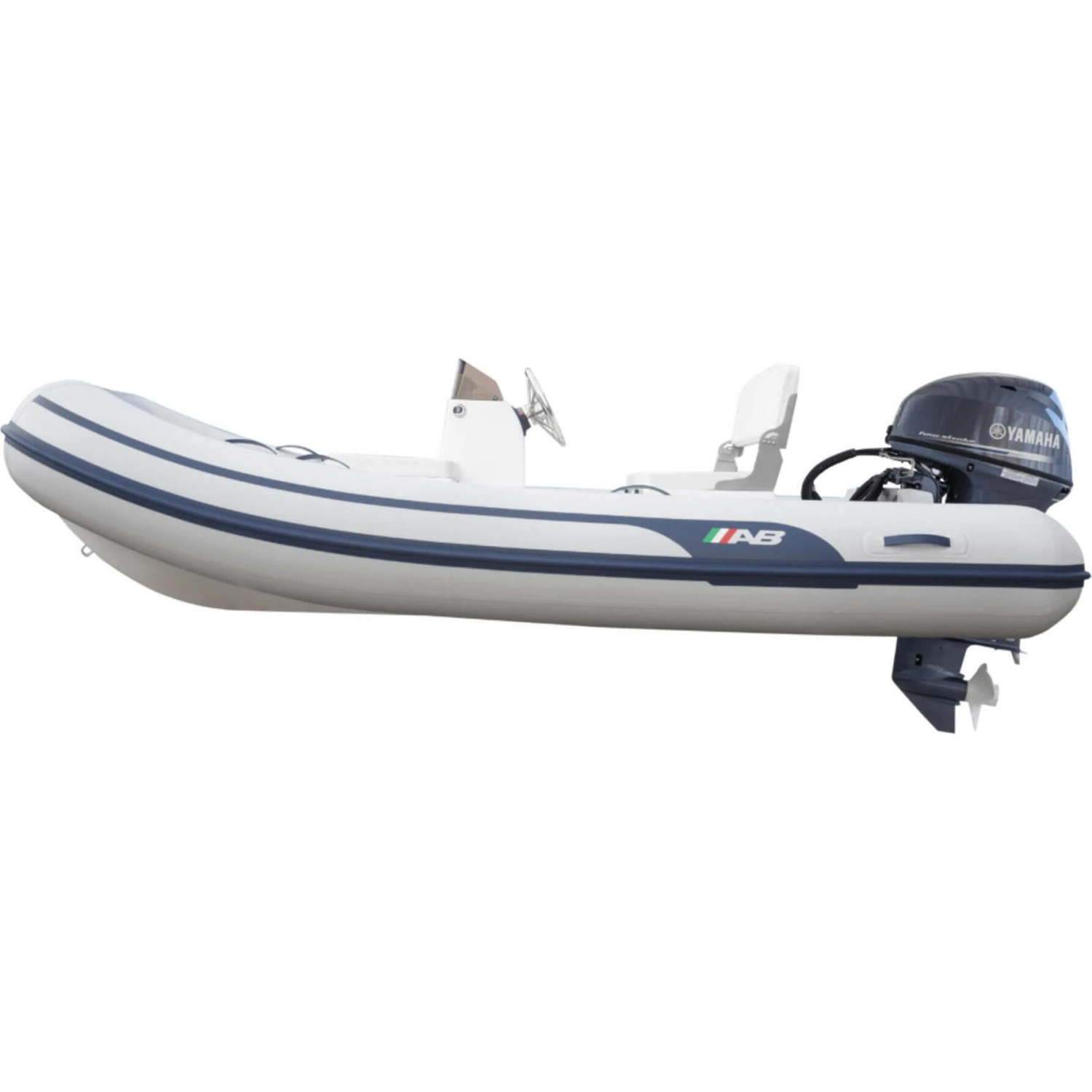

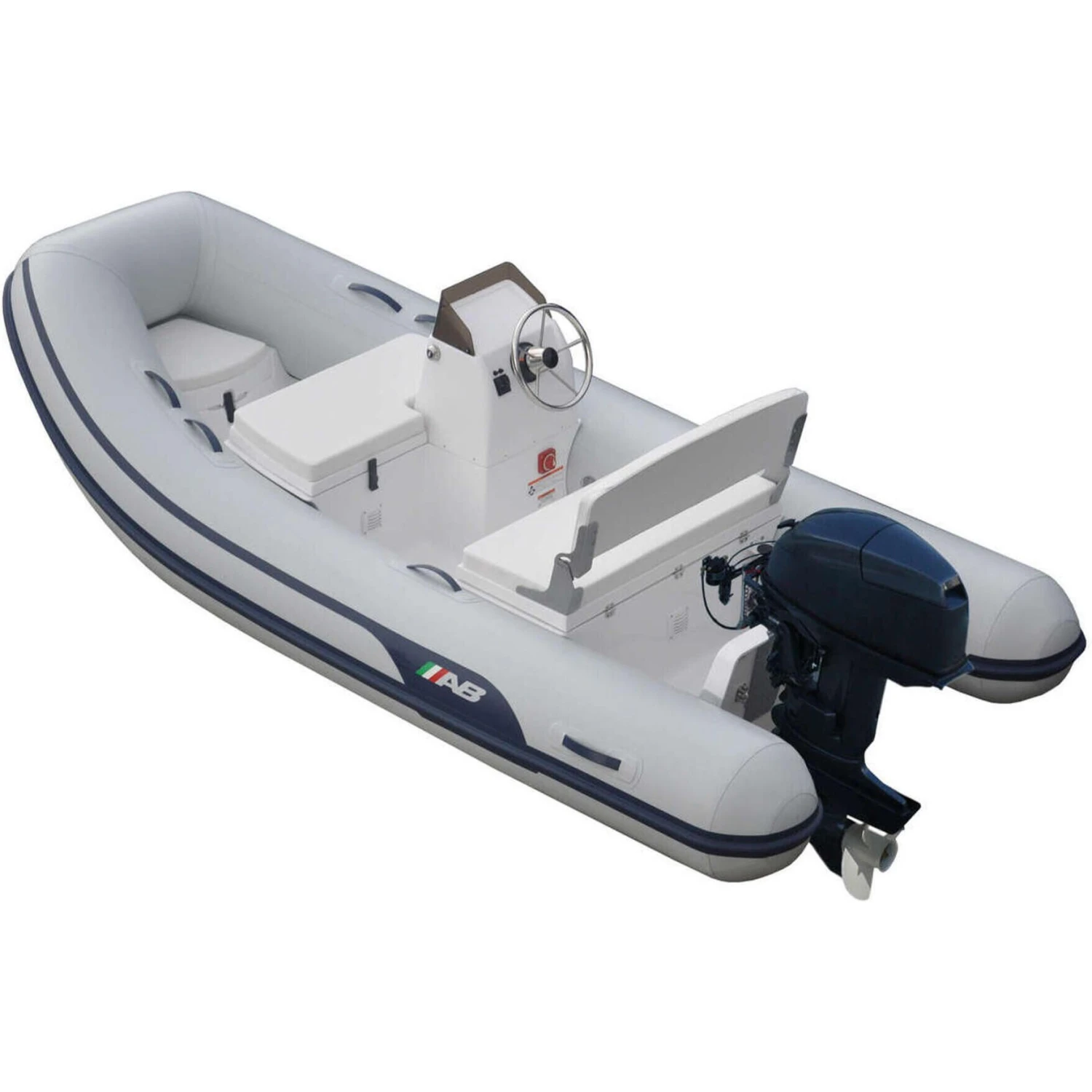

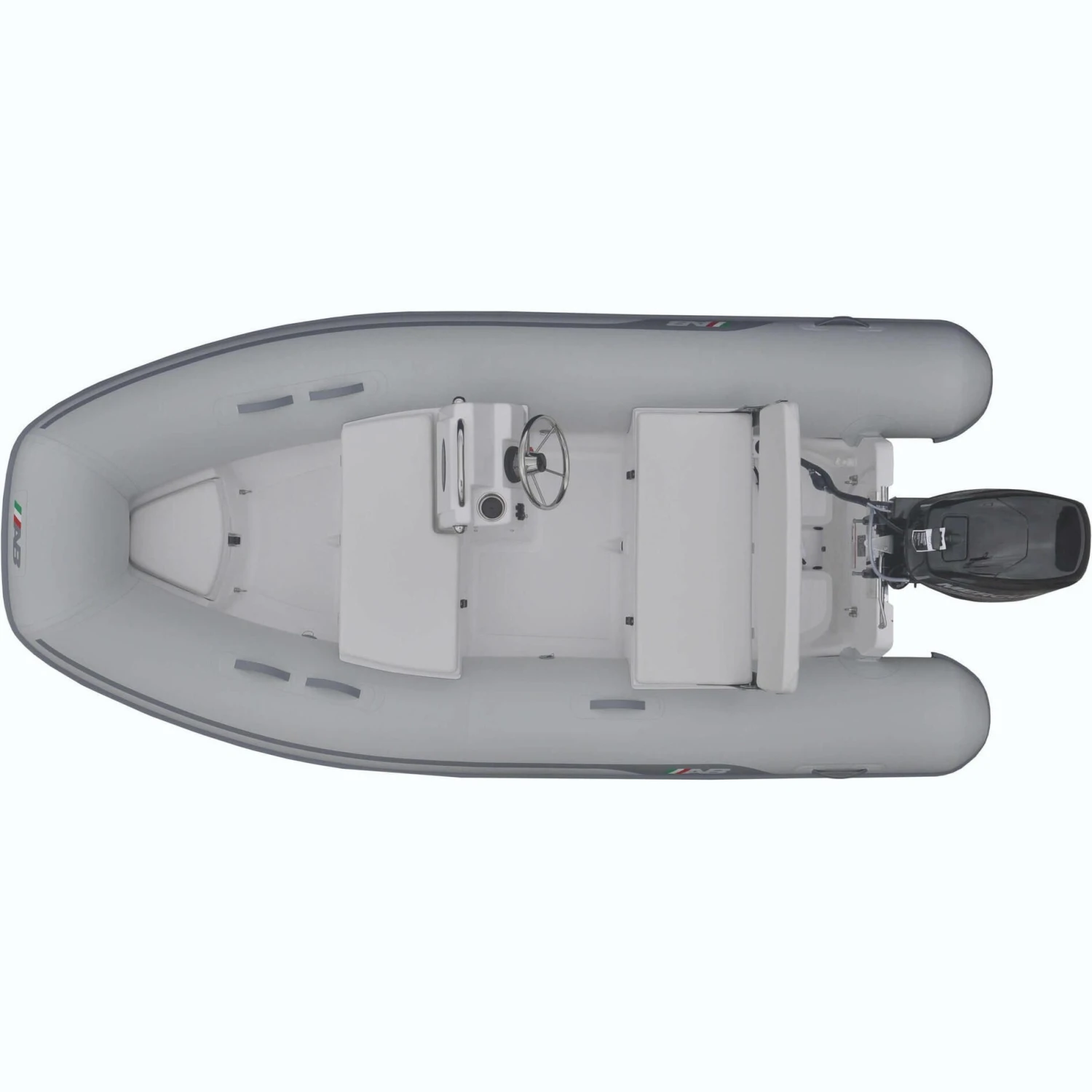

AB Inflatables Mares 12 VSX Fiberglass RIB 12′ Boat With Yamaha 30 HP Motor – F30 – 2024

Features:

• Fiberglass “V” hull

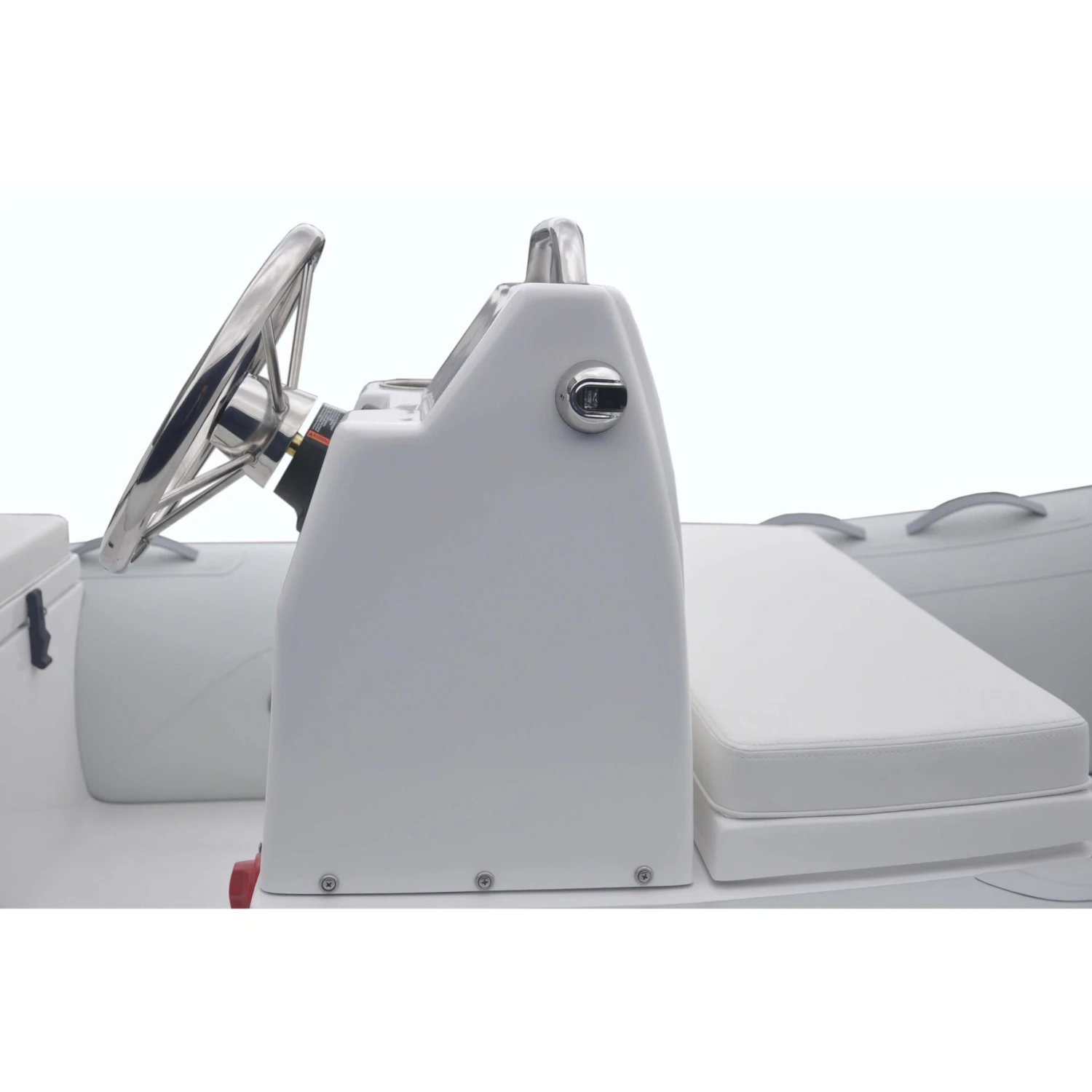

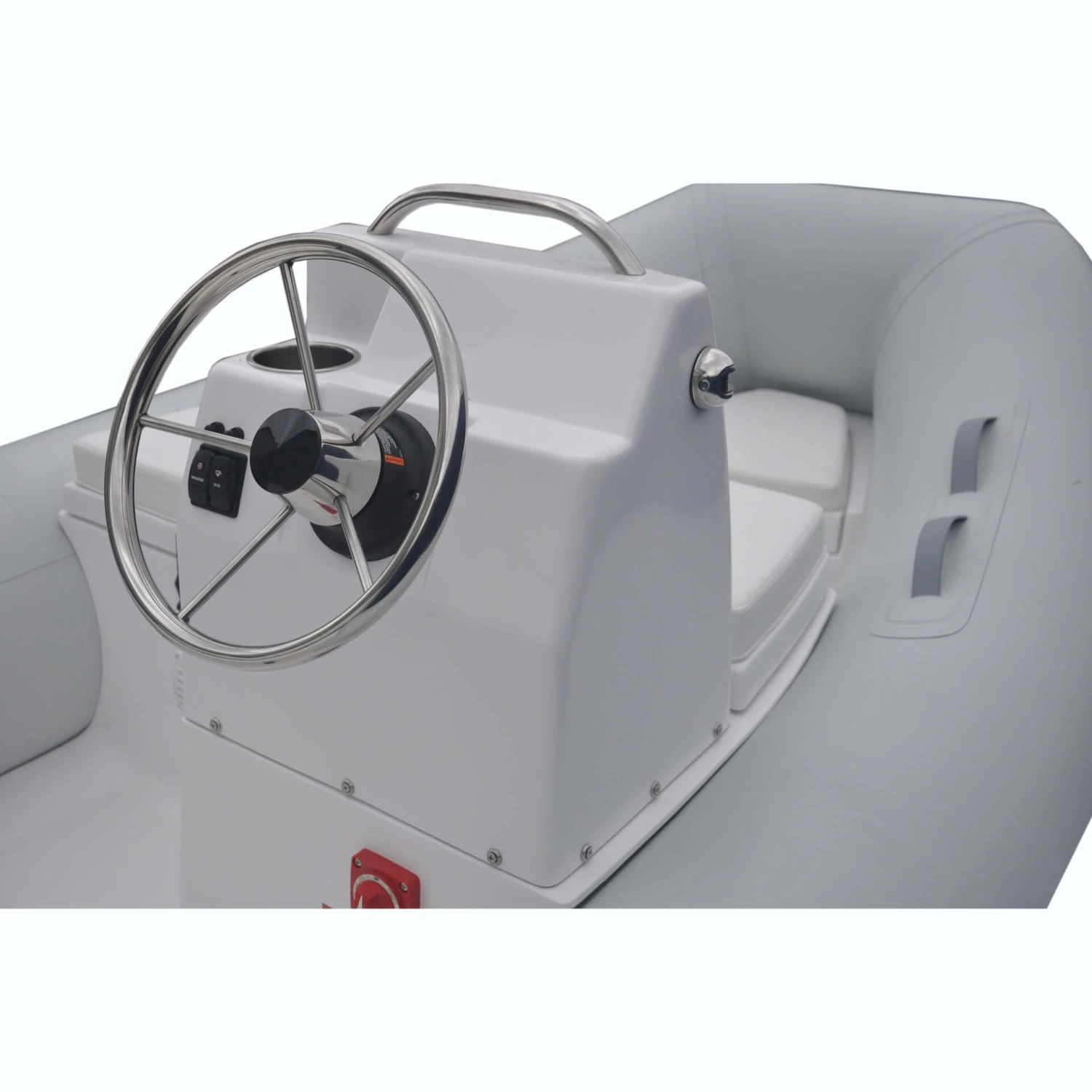

• Integrated fiberglass console
• Molded non-skid deck
• Digital tachometer
• Single rub strake
• Lifting eyes (4-point lift system)
• Automatic bilge pump

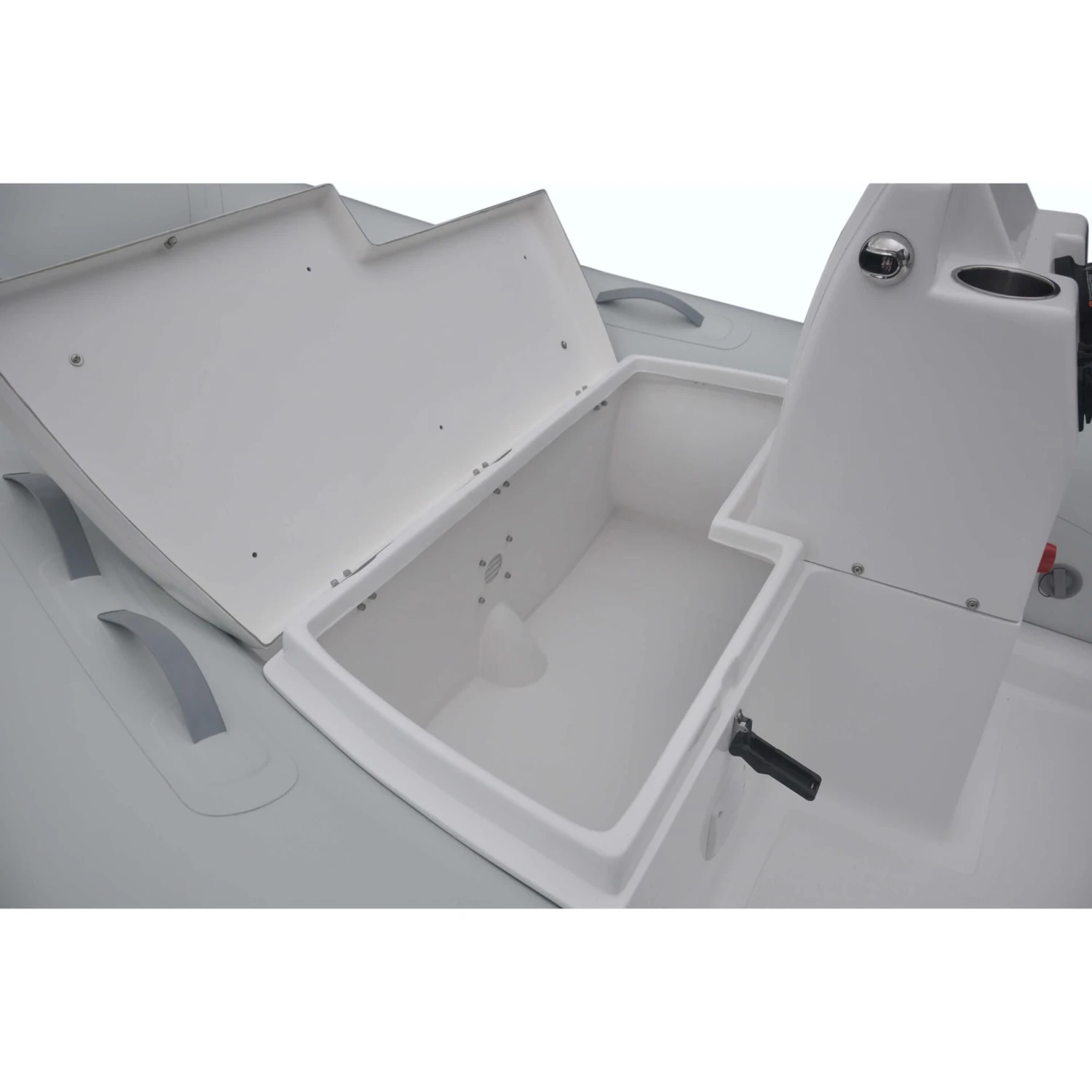

• Under seat storage compartments

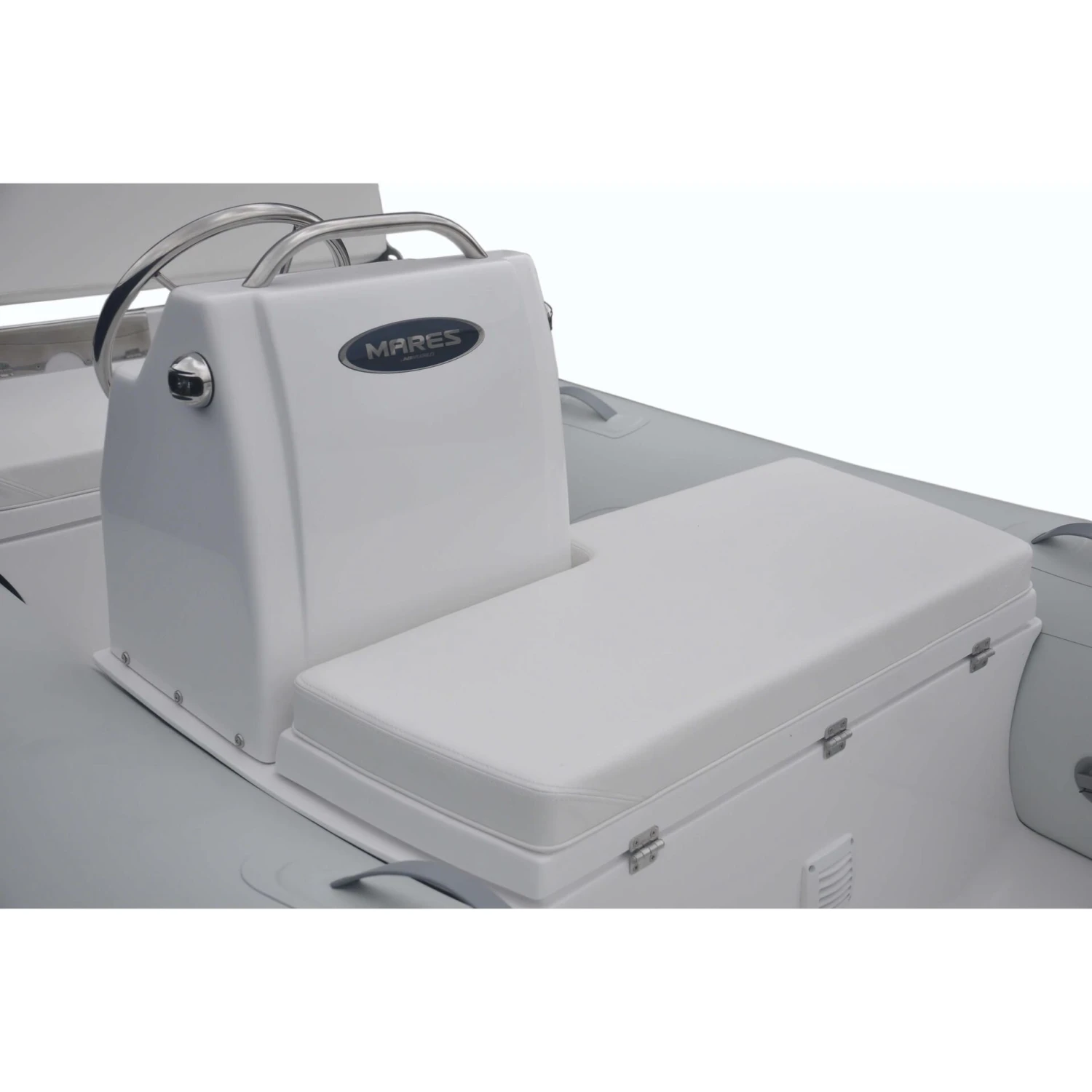

• Helm seat with cushioned backrest and storage space
• Molded-in bow storage compartment / anchor locker with cushion
• Fuel/water separator
• Battery cut-off switch and battery storage
• LED navigation lights
• Transom tie-downs installed
• Hand pump
• Repair kit

Specifications:

• Length: 12′ 0″
• Beam: 6′ 0″
• Hull weight: 337 lbs
• Motor: Yamaha 30 HP
• Capacity: (5) Persons or 1,895 lbs
• Tube diameter: 18″
• Separate air chambers: (3)
• Fuel tank with 6 Gal capacity, in bow locker
• Fabric type: Hypalon – CSM
• Color: Grey with blue trim
• AB Factory Warranty: 10 years. Warranty begins on date of purchase.
• Yamaha Factory Warranty: 3 years. Warranty begins on date of purchase.

AB inflatables Owner’s Manual (12.39 MB)

Data Sheet

Chock and Davit Information

Dimensions Diagram

Yamaha F30 Owner’s Manual (9.43 MB)
